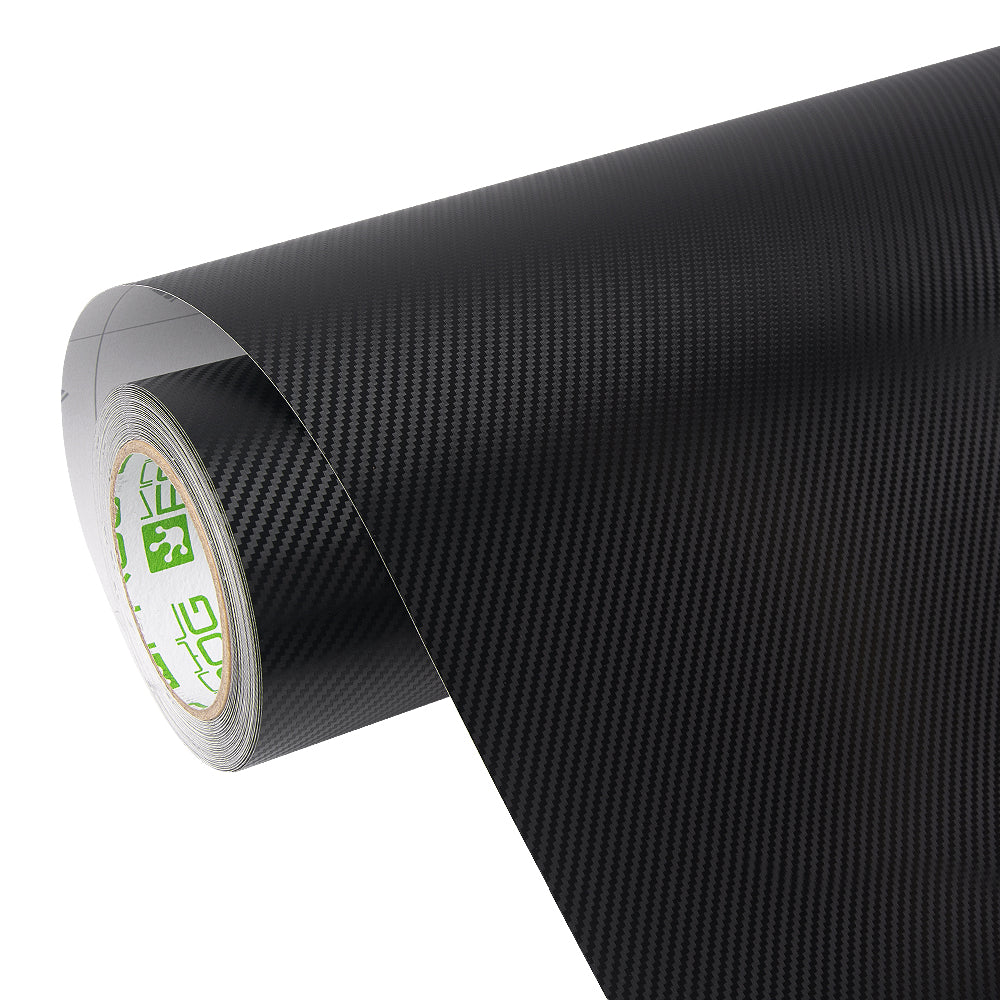

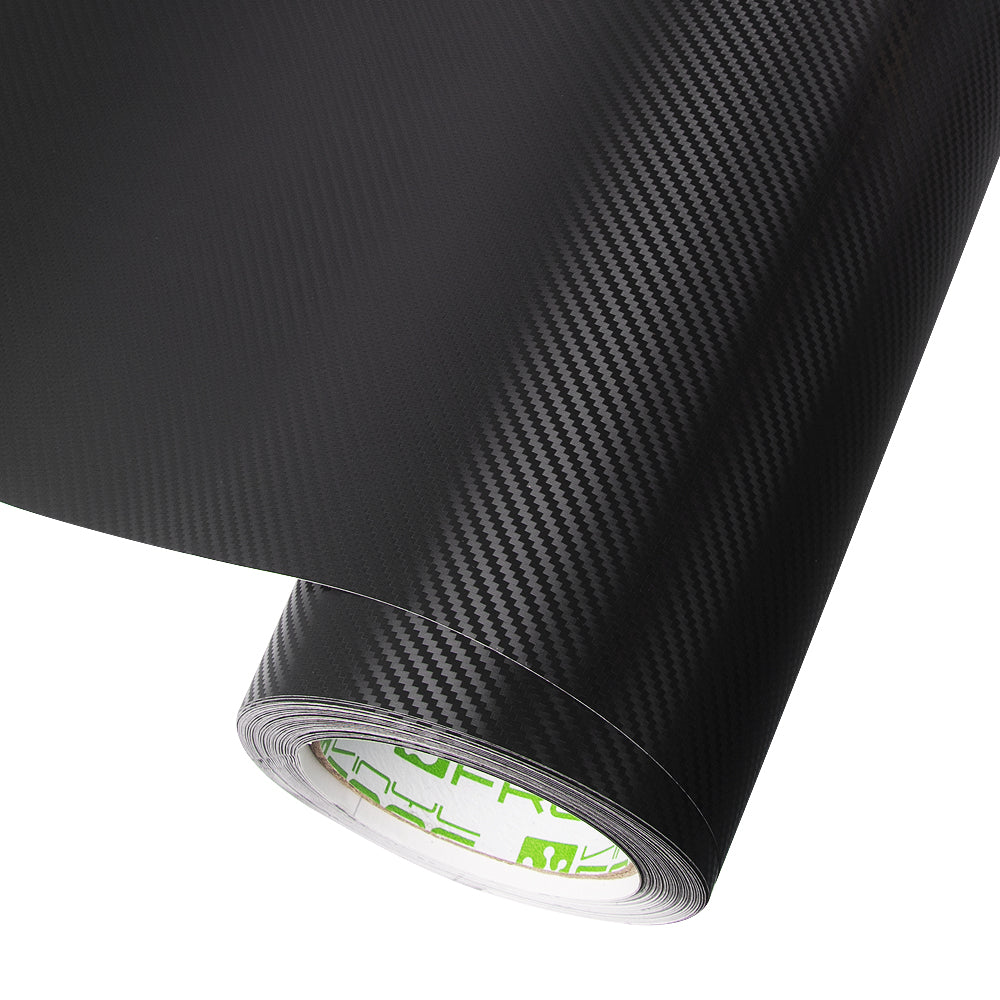

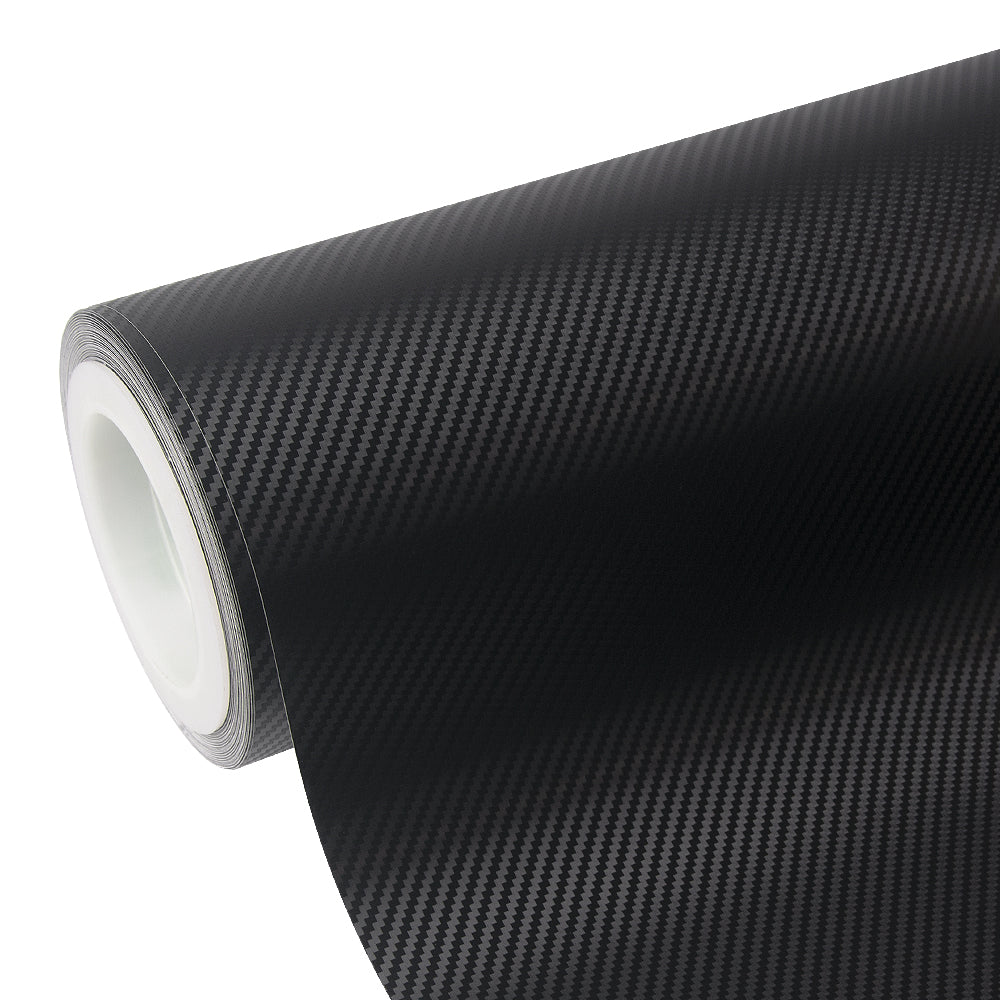

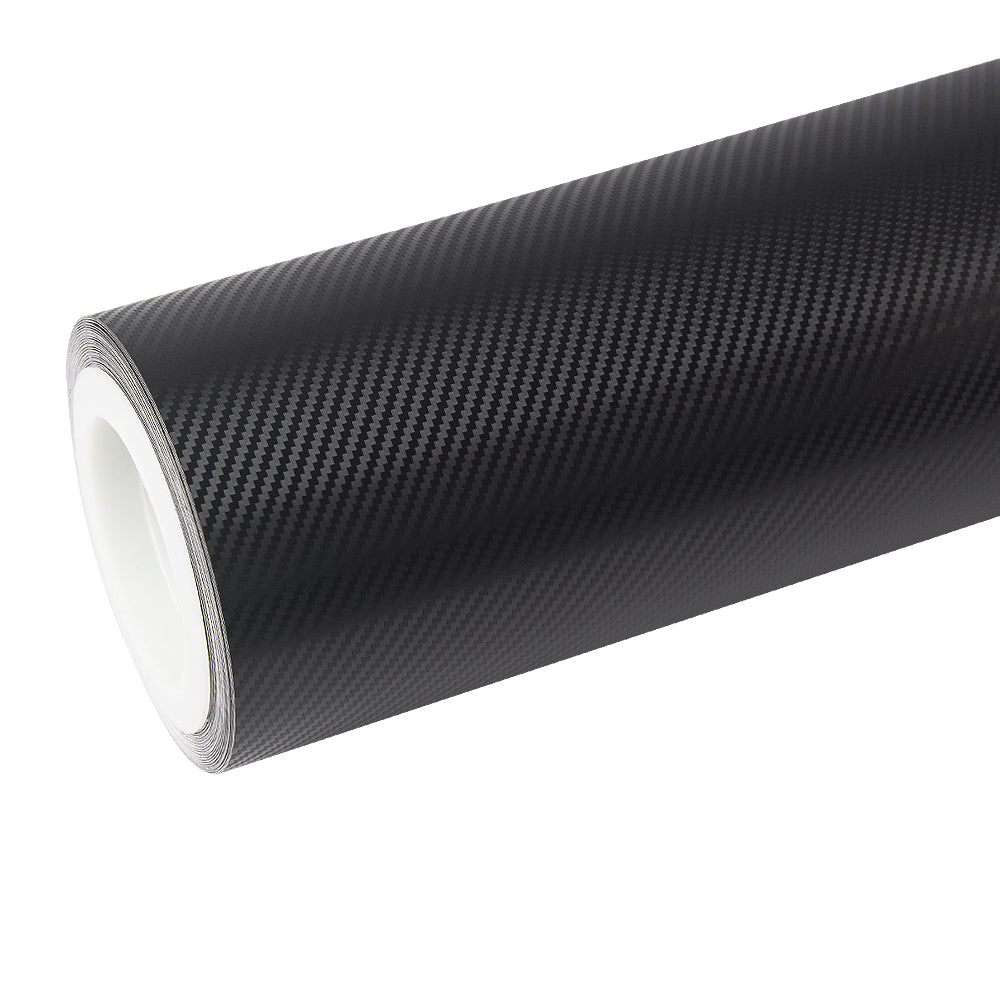

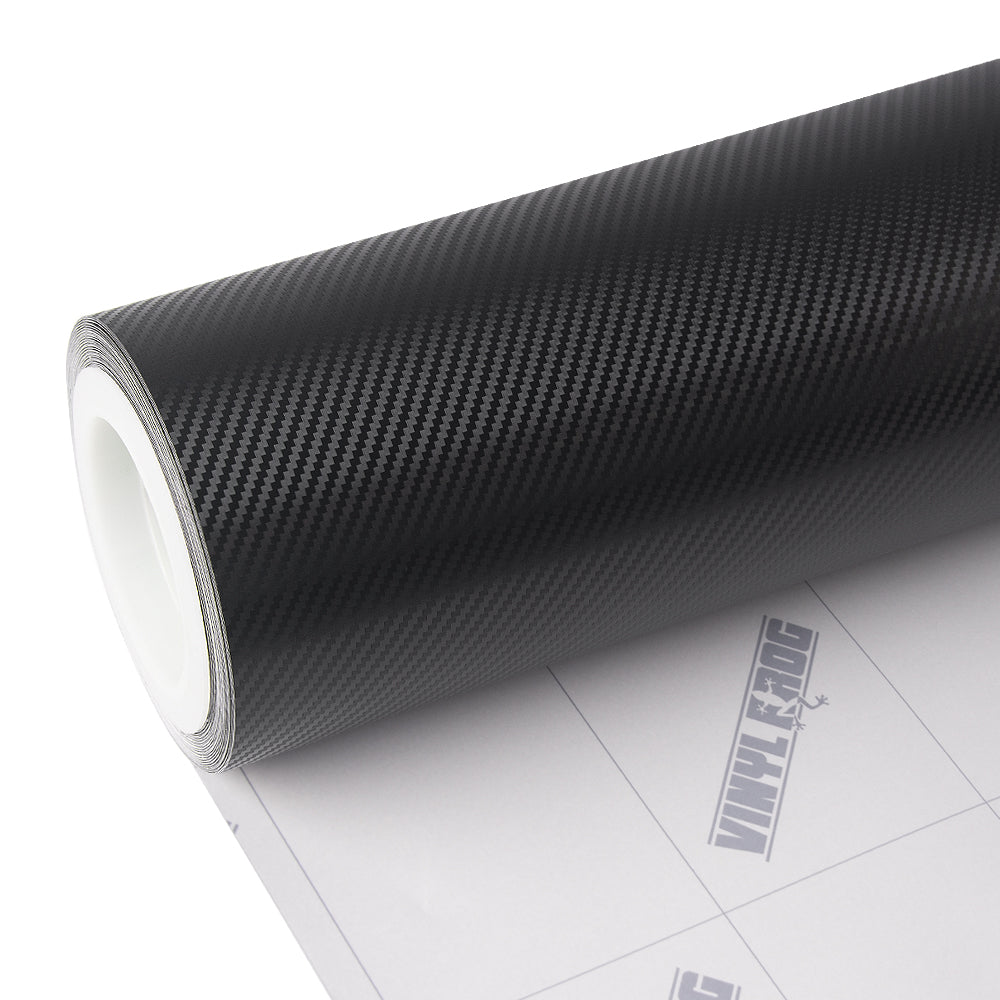

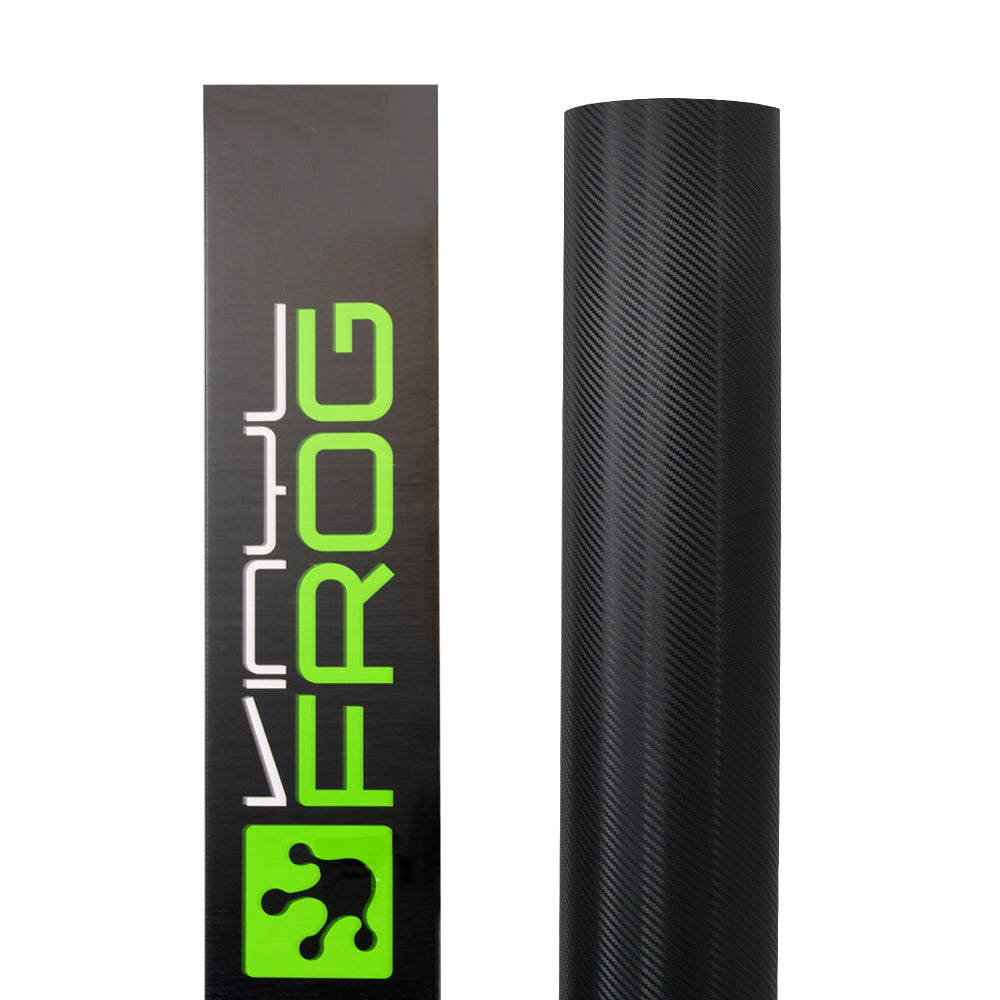

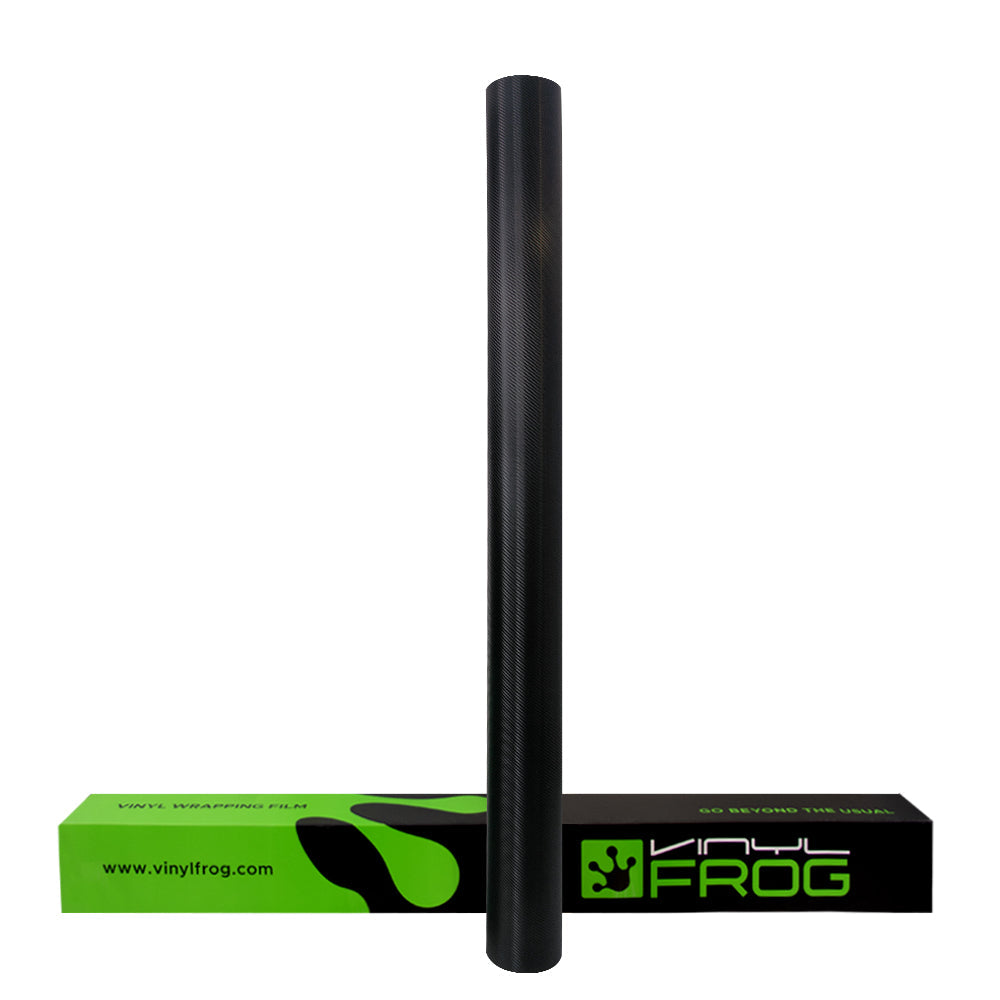

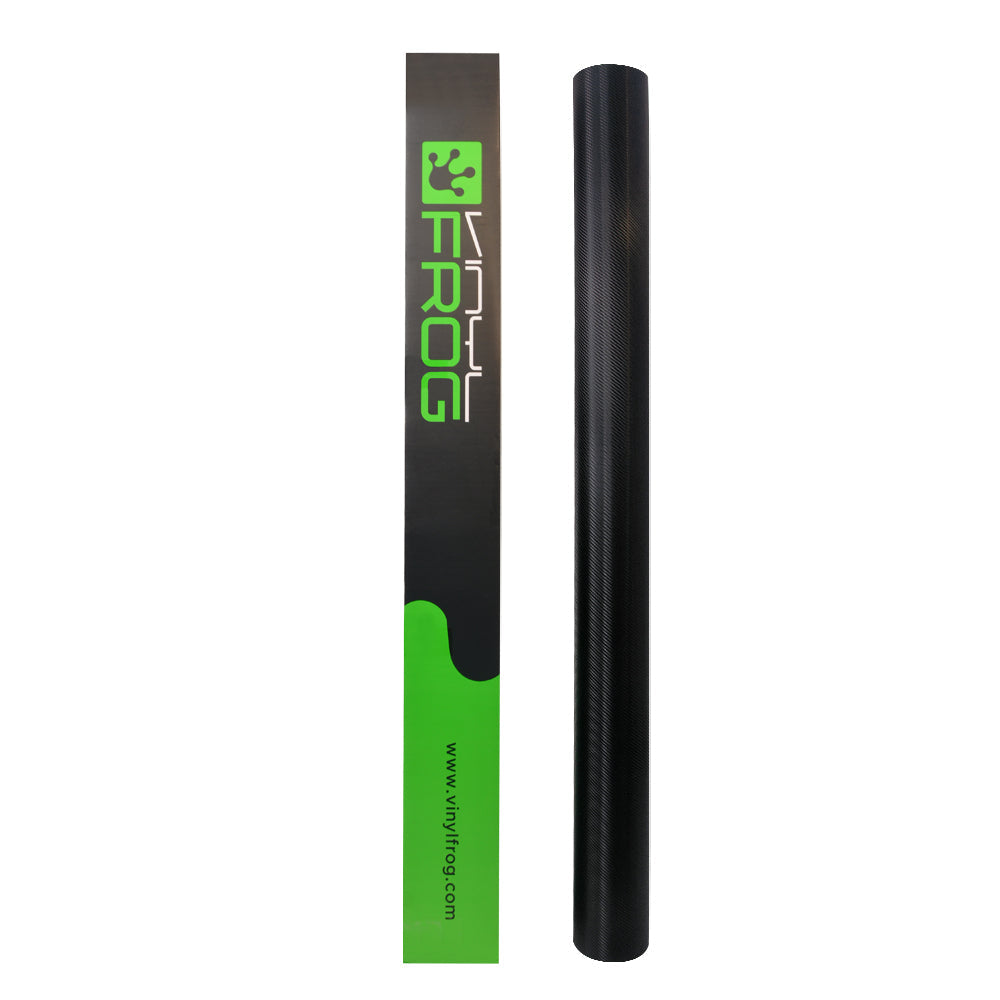

Weave Black Carbon Fiber Vinyl Wrap

Weave Black Carbon Fiber Vinyl Wrap

SKU:SUP05

Contact for Wholesale Inquiries

Structure

Material

  • High Grade Polymeric Calendared Vinyl Film
  • Fashionable, Stunning Color
  • With Air Release Channel
  • Bubble-free Application
  • Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %



Functions

▲ Standard Size & Appearance

Classification Unit Spec Remark
Thickness
Surface materials um 120±2% High-grade PVC-Polymeric
Glue um 30±2% High-quality Solvent-based
Release liner um 180±2%(paper)/
130±2%(plastic)
Surface Opaque
Width mm 1520±0. 01%
Length mm 1800+1%



Physical properties

▲ General Properties

Features Test Method Results
Release force
N/25mm
25℃ and 50% 0.12
Initial tack
g/25mm
under 26℃ and 64%, GB31125-2014 1360
Peel Strength
N/25mm
25℃and 42%, GB/T2792-1998 7.05
Holding power(h) 25℃ and 50%, GB/T4851-1998 72.09
Shelf life stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place 2 years
Application temperature / +20℃ to +30℃
Aging Test 1 7 days under 65°C No adhesive residue with heat
Aging Test 2 10 days under 65°C No adhesive residue without heat
Shrinkage / less than 4%



Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
