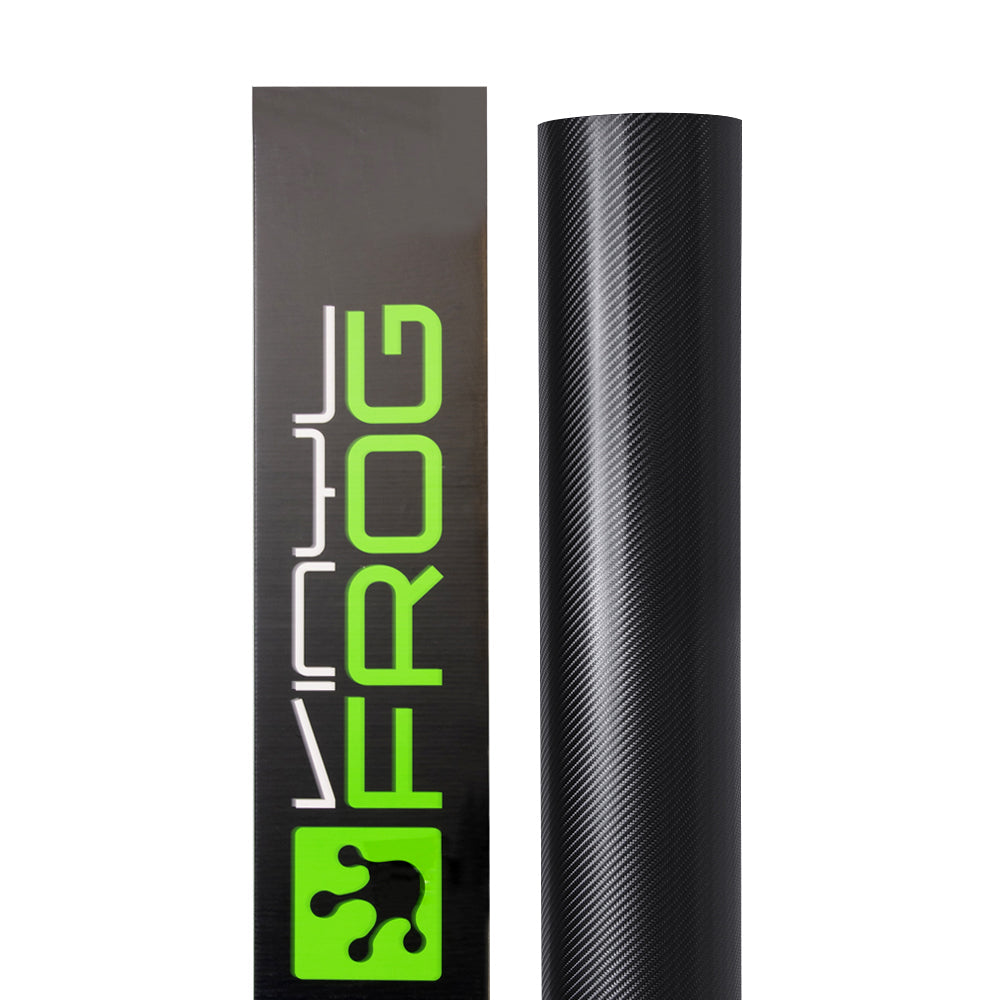

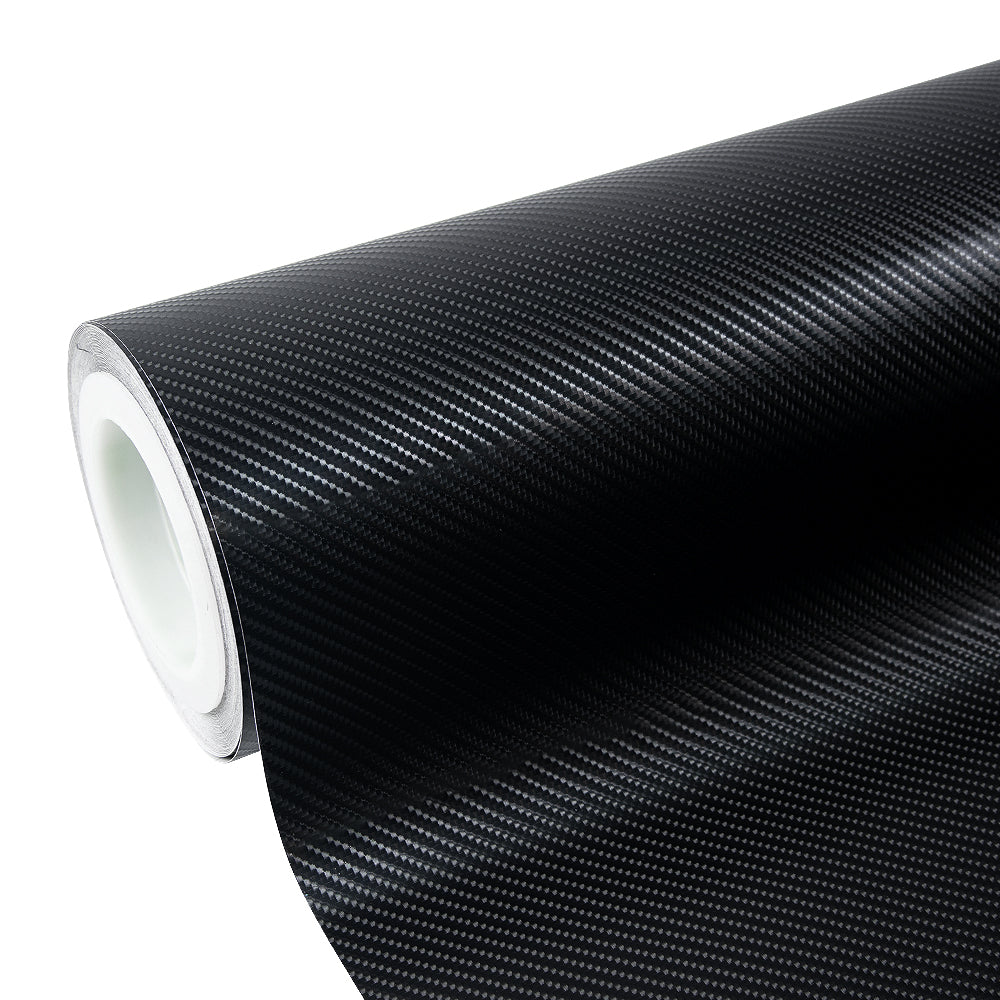

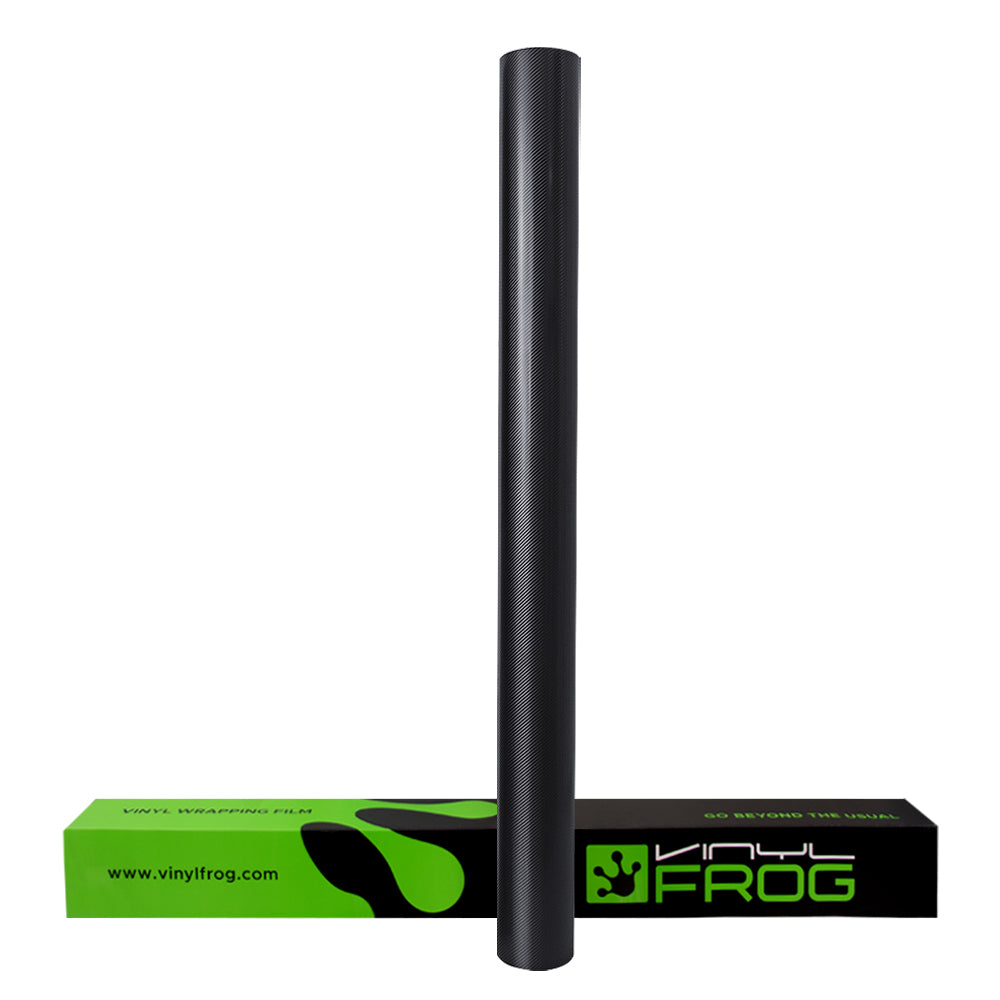

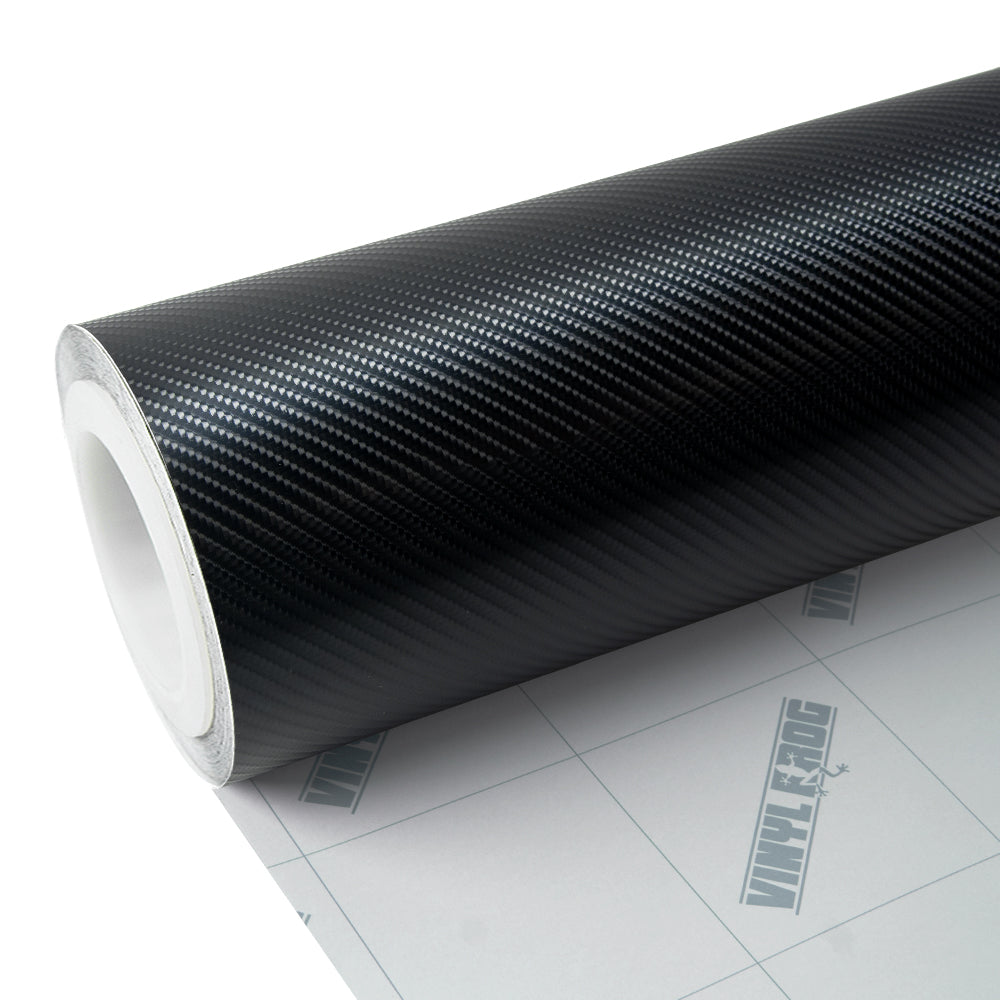

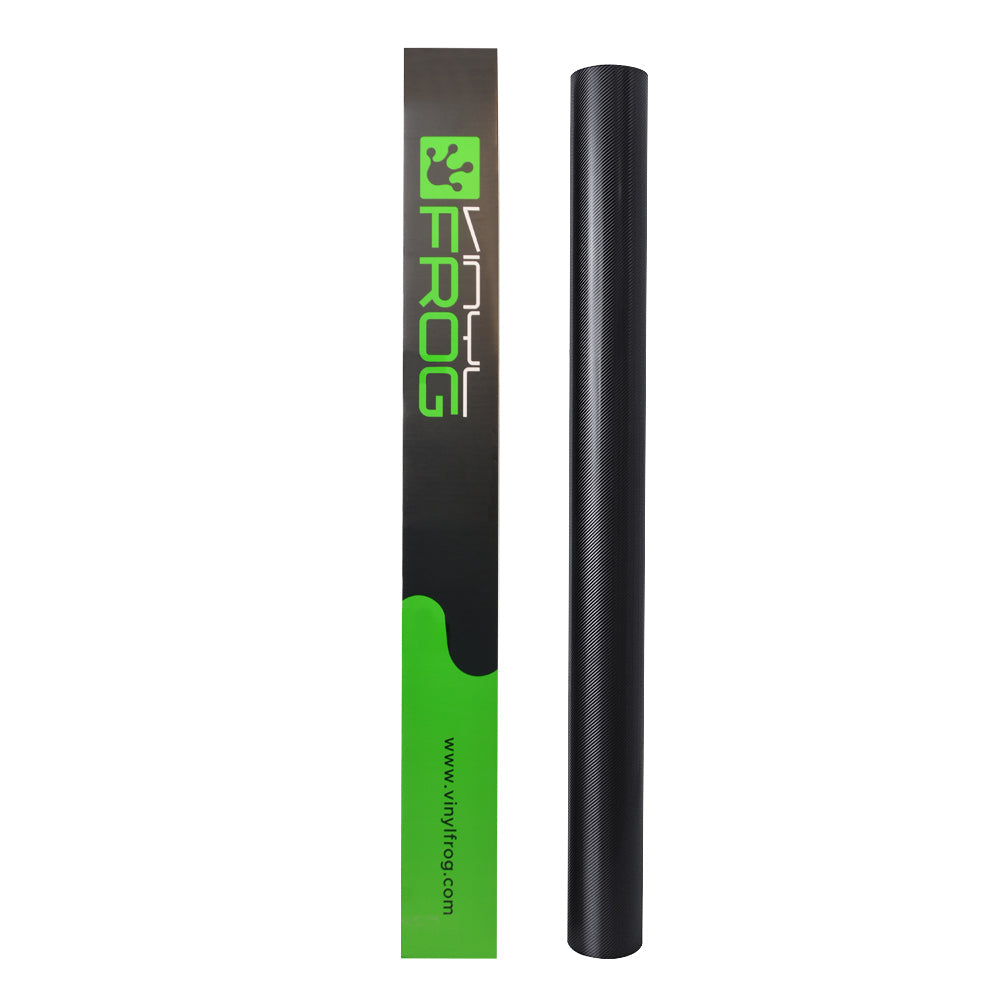

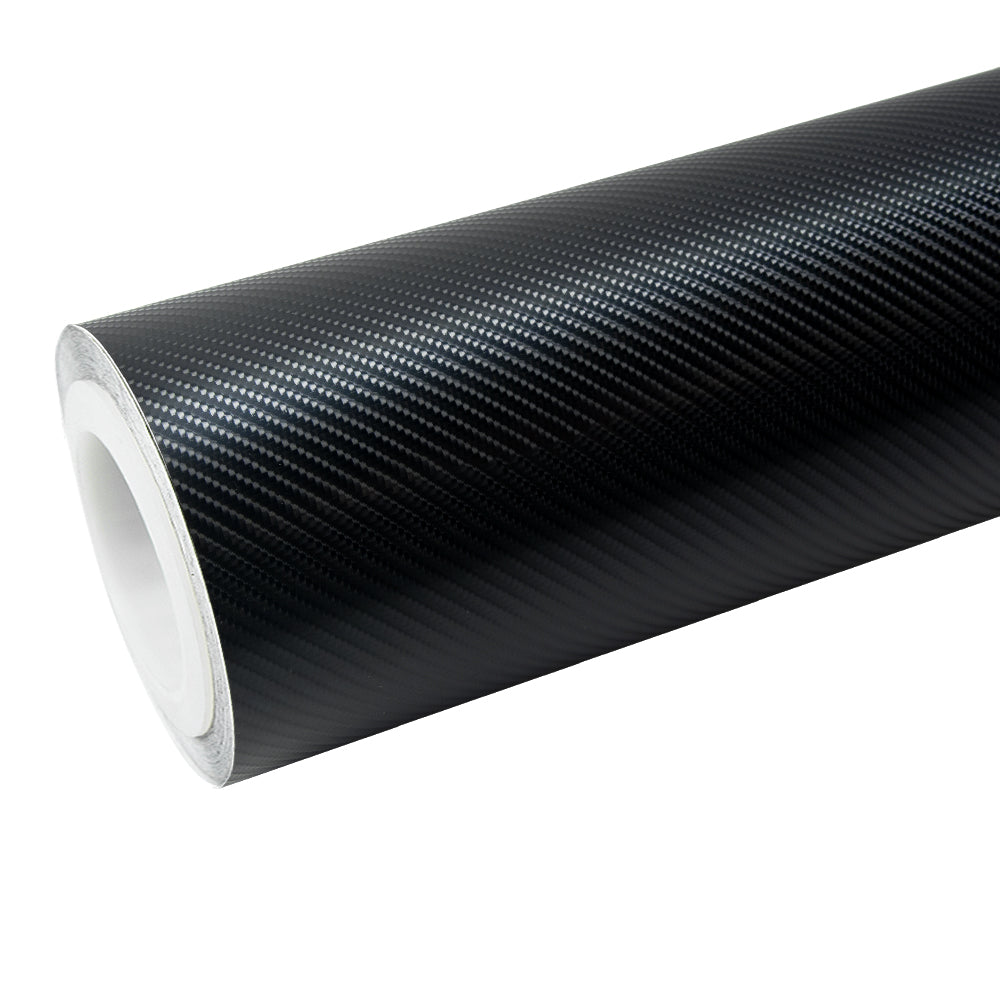

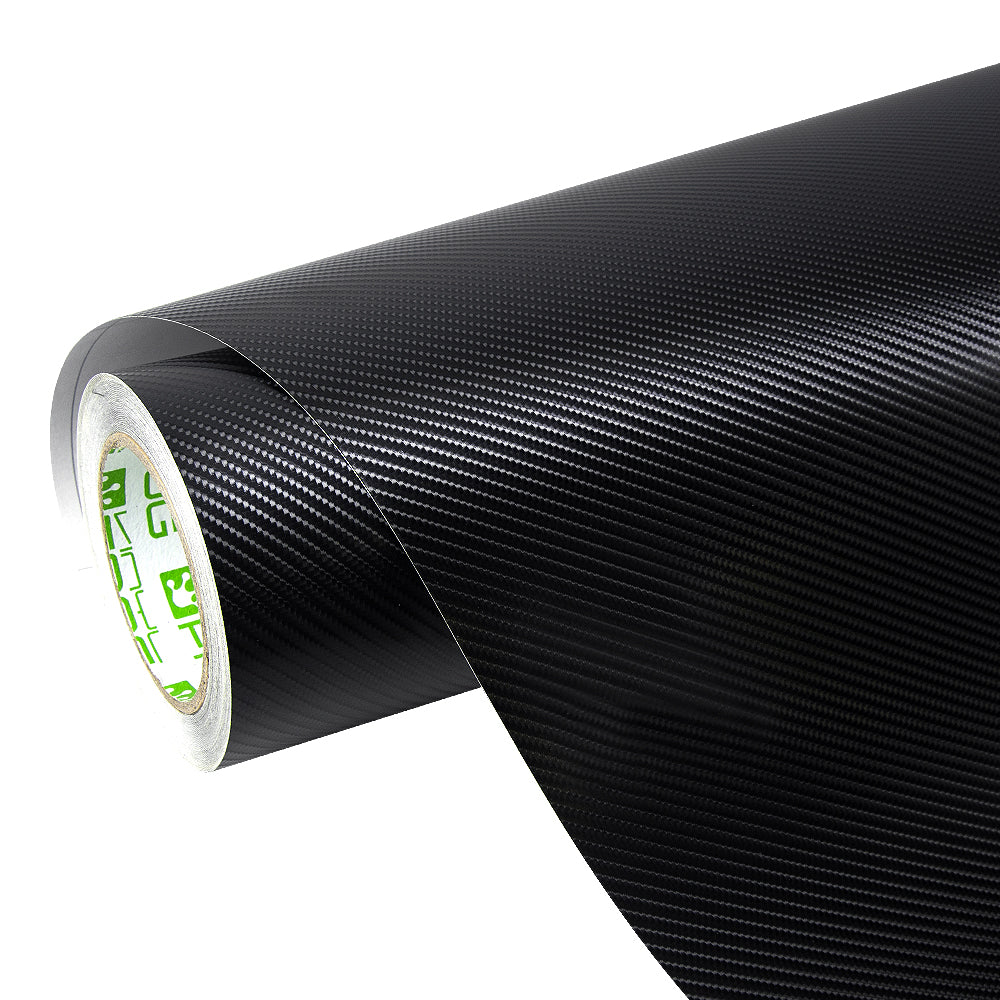

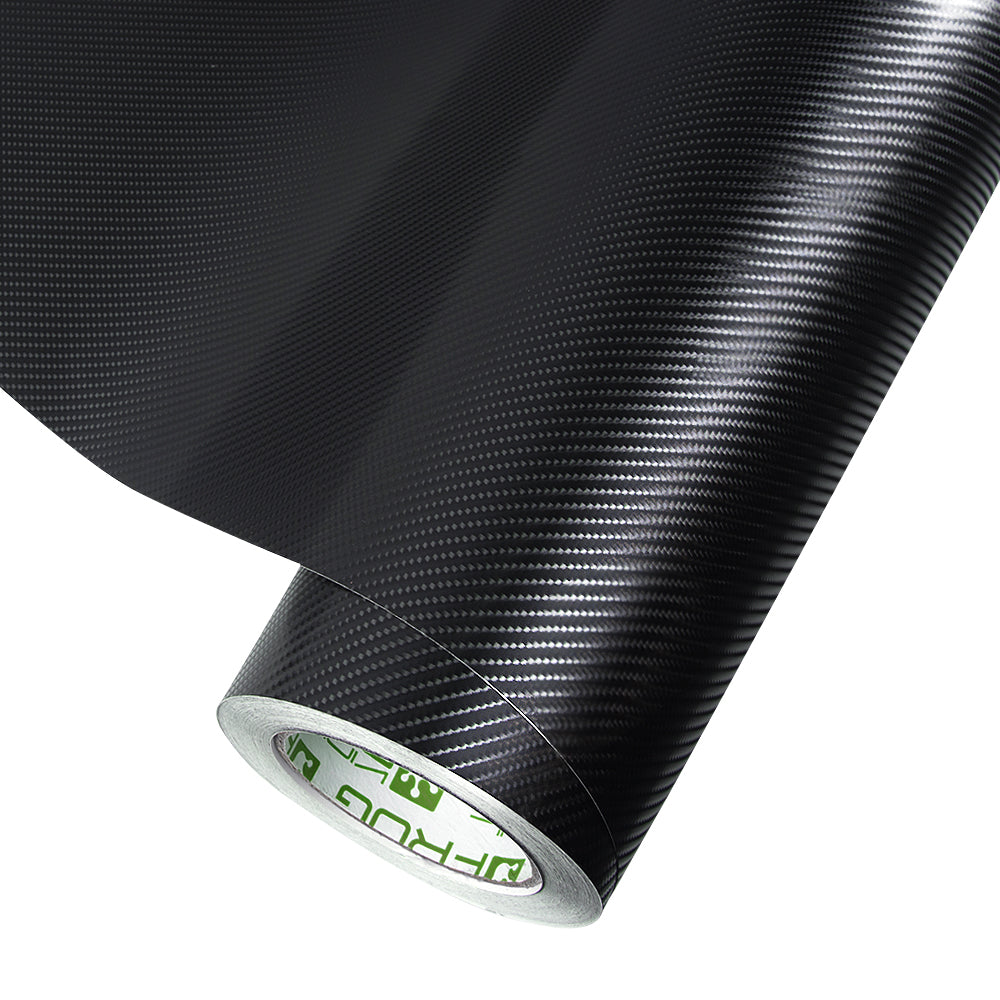

Spiral Black Carbon Fiber Vinyl Wrap

Spiral Black Carbon Fiber Vinyl Wrap

SKU:SUP04

Contact for Wholesale Inquiries

Video

Structure

Material

  • High Grade Polymeric Calendared Vinyl Film
  • Fashionable, Stunning Color
  • With Air Release Channel
  • Bubble-free Application
  • Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %



Functions

▲ Standard Size & Appearance

Classification Unit Spec Remark
Thickness
Surface materials um 120±2% High-grade PVC-Polymeric
Glue um 30±2% High-quality Solvent-based
Release liner um 180±2%(paper)/
130±2%(plastic)
Surface Opaque
Width mm 1520±0. 01%
Length mm 1800+1%



Physical properties

▲ General Properties

Features Test Method Results
Release force
N/25mm
25℃ and 50% 0.12
Initial tack
g/25mm
under 26℃ and 64%, GB31125-2014 1360
Peel Strength
N/25mm
25℃and 42%, GB/T2792-1998 7.05
Holding power(h) 25℃ and 50%, GB/T4851-1998 72.09
Shelf life stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place 2 years
Application temperature / +20℃ to +30℃
Aging Test 1 7 days under 65°C No adhesive residue with heat
Aging Test 2 10 days under 65°C No adhesive residue without heat
Shrinkage / less than 4%



Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.

Contact for Wholesale Inquiries View full details
