Structure

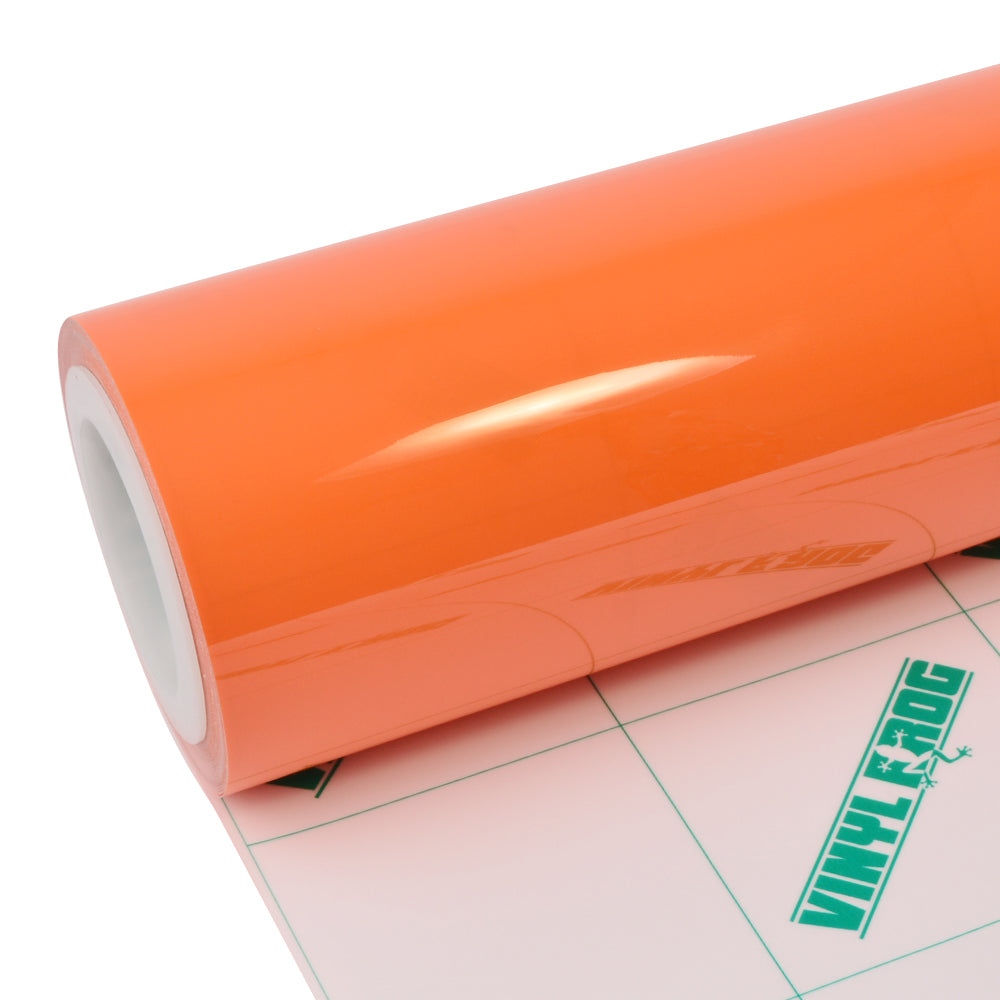

Our products are composed of 4 layers, starting from the outer edge is 1st layer that is to protect the underneath vinyl and its called protection layer. After that the high grade polymeric vinyl supported with pressure sensitive acrylic adhesive. Lastly there is a layer of 160g double sided silicon coated release liner.



Material

• High Grade Polymeric Calendared Vinyl Film
• Fashionable, Stunning Color

• With Air Release Channel
• Bubble-free Application

• Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %

Functions

Recommended Uses

▲ Standard Size & Appearance

Classification		Unit	Spec	Remark
Thickness	Top protected film	um	36±2%	PET/PVC
	Surface materials	um	115±2%	High-grade PVC-Polymeric
	Glue	um	30±2%	High-quality Solvent-based
	Release liner	um	180±2%(paper)/ 130±2%(plastic)	－
Surface		－	Opaque	－
Width		mm	1520±0. 01%	－
Length		mm	1800+1%	－



Physical properties

▲ General Properties

Features		Test Method	Results
Release force N/25mm		25℃ and 50%	0.12
Initial tack g/25mm		under 26℃ and 64%, GB31125-2014	987
Peel Strength N/25mm		25℃and 42%, GB/T2792-1998	7.25
Holding power(h)		25℃ and 50%, GB/T4851-1998	72.09
Shelf life		stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place	2 years
Application temperature		/	+20℃ to +30℃
Aging Test 1		7 days under 65°C	No adhesive residue with heat
Aging Test 2		10 days under 65°C	No adhesive residue without heat
Shrinkage		/	less than 4%

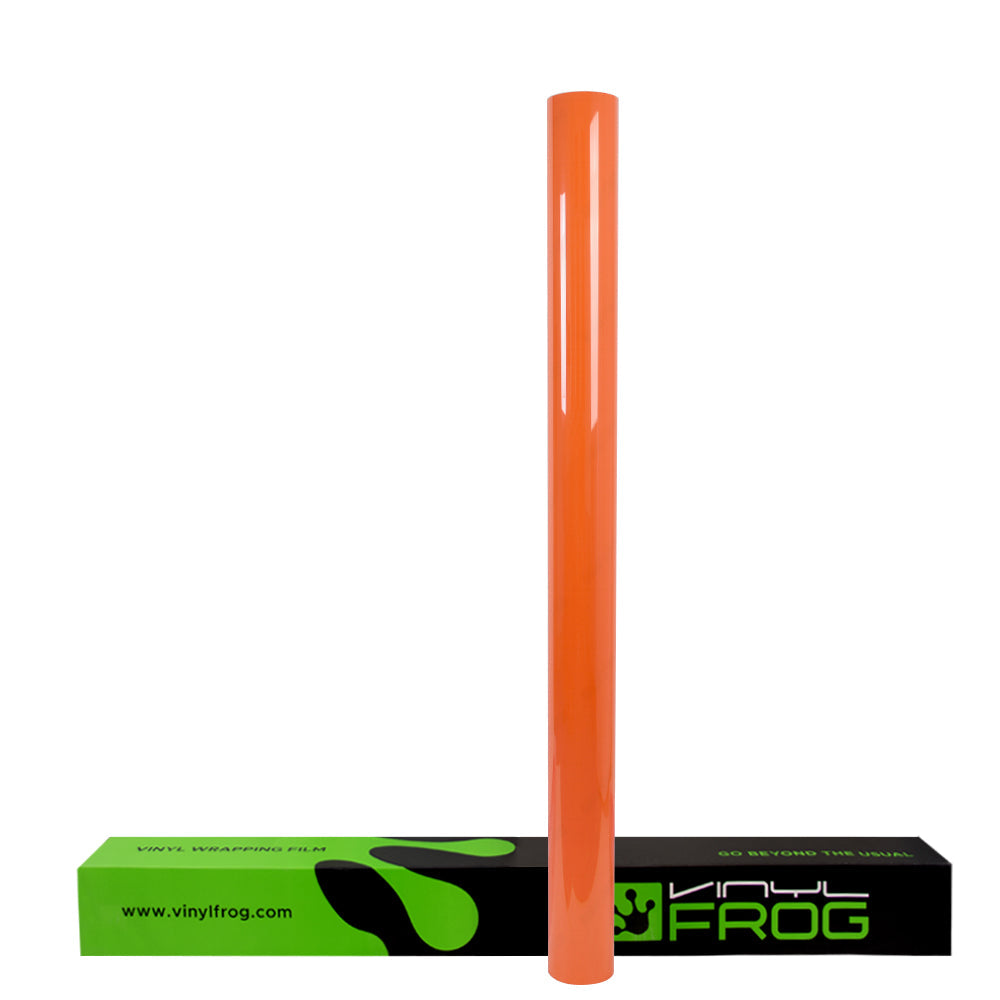

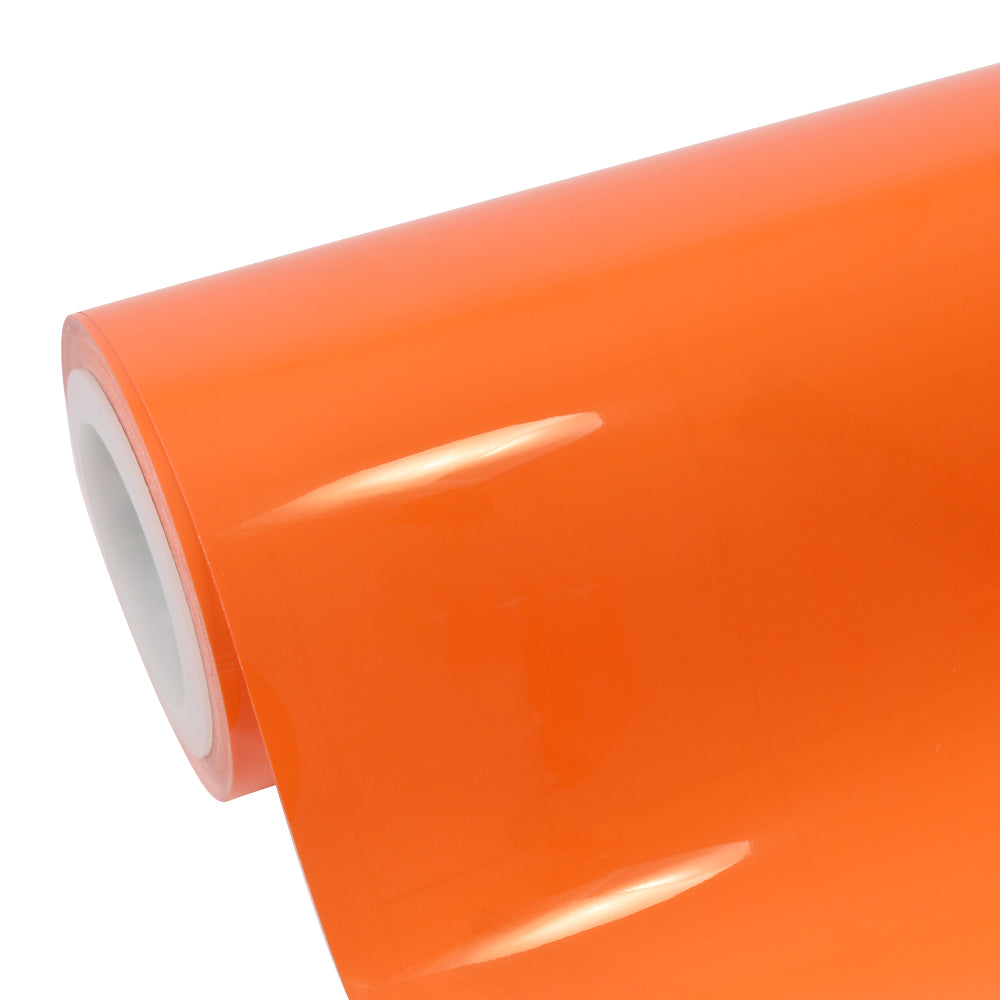

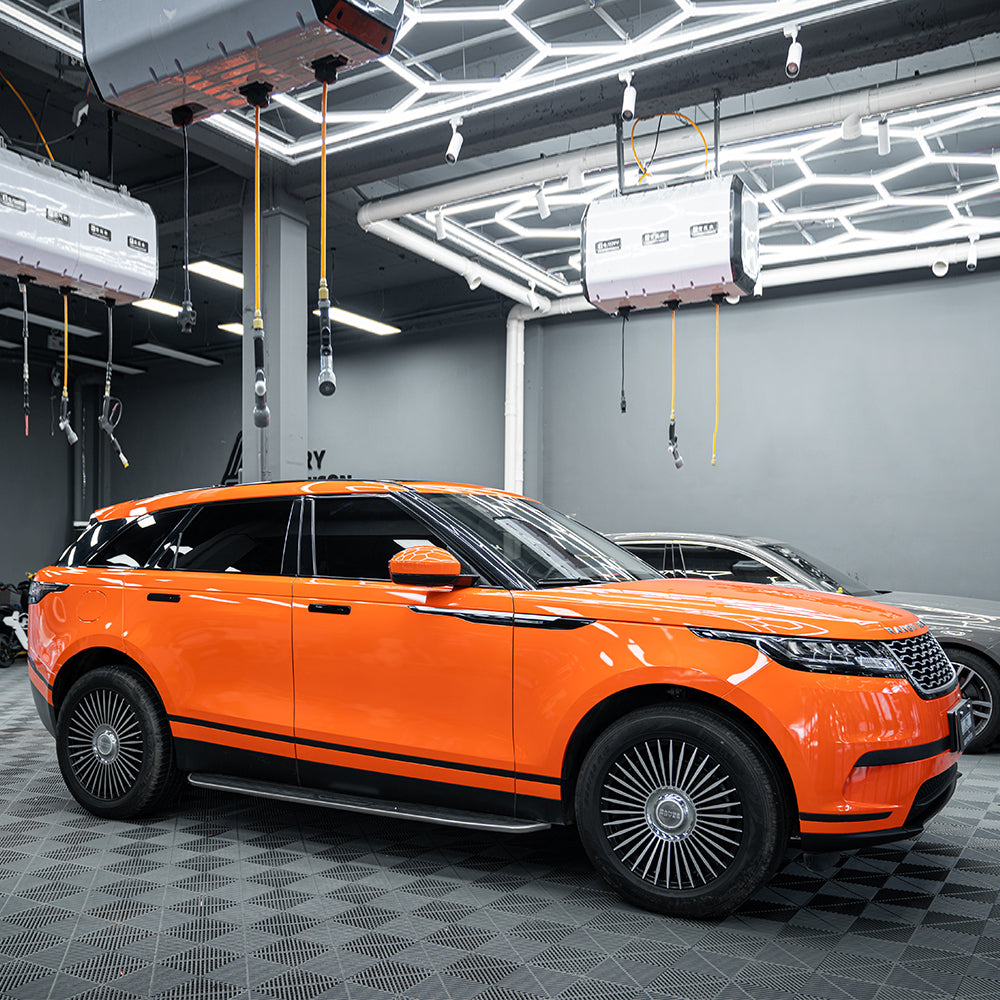

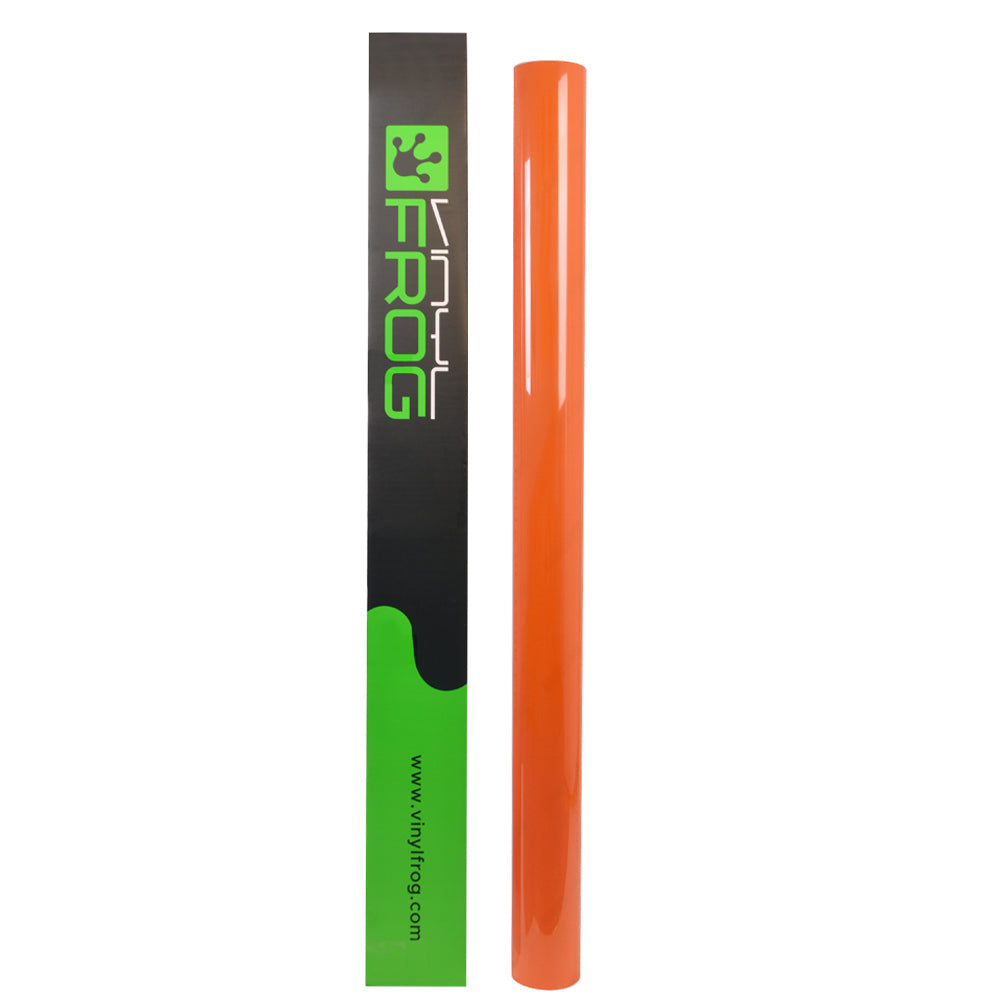

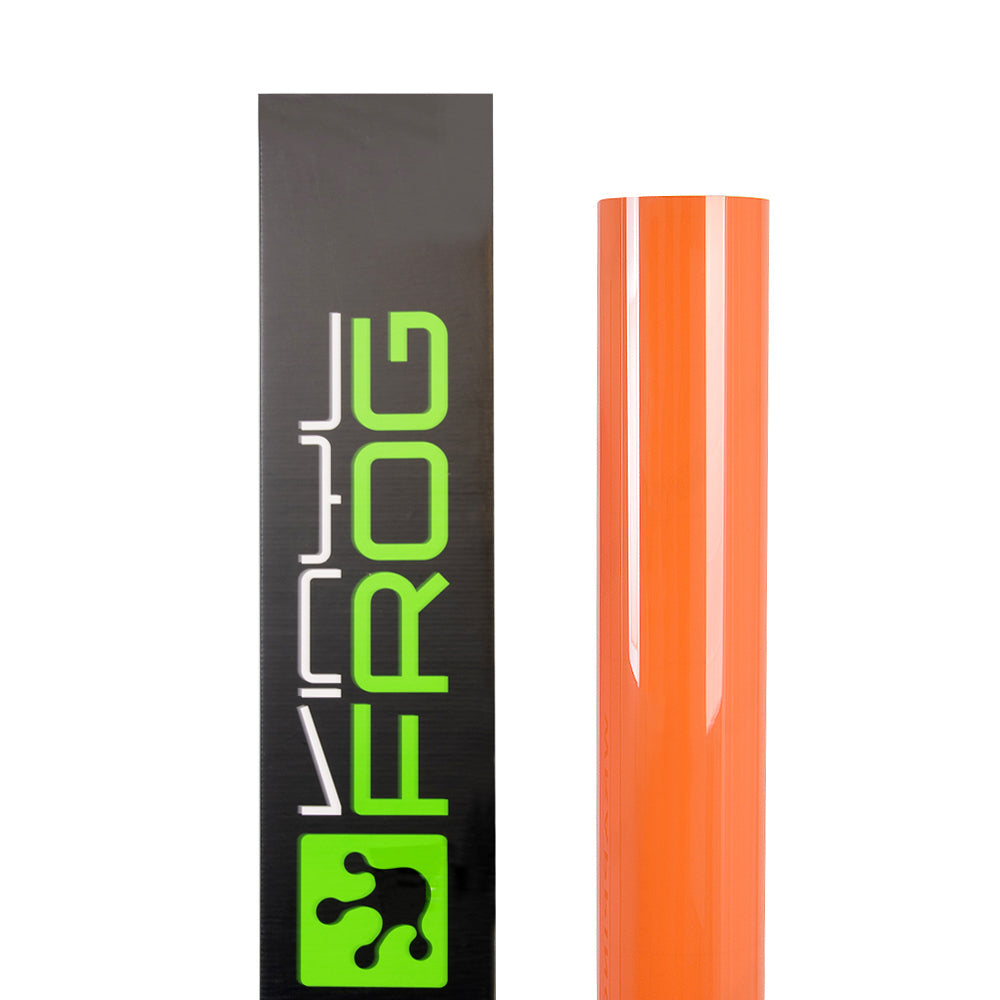

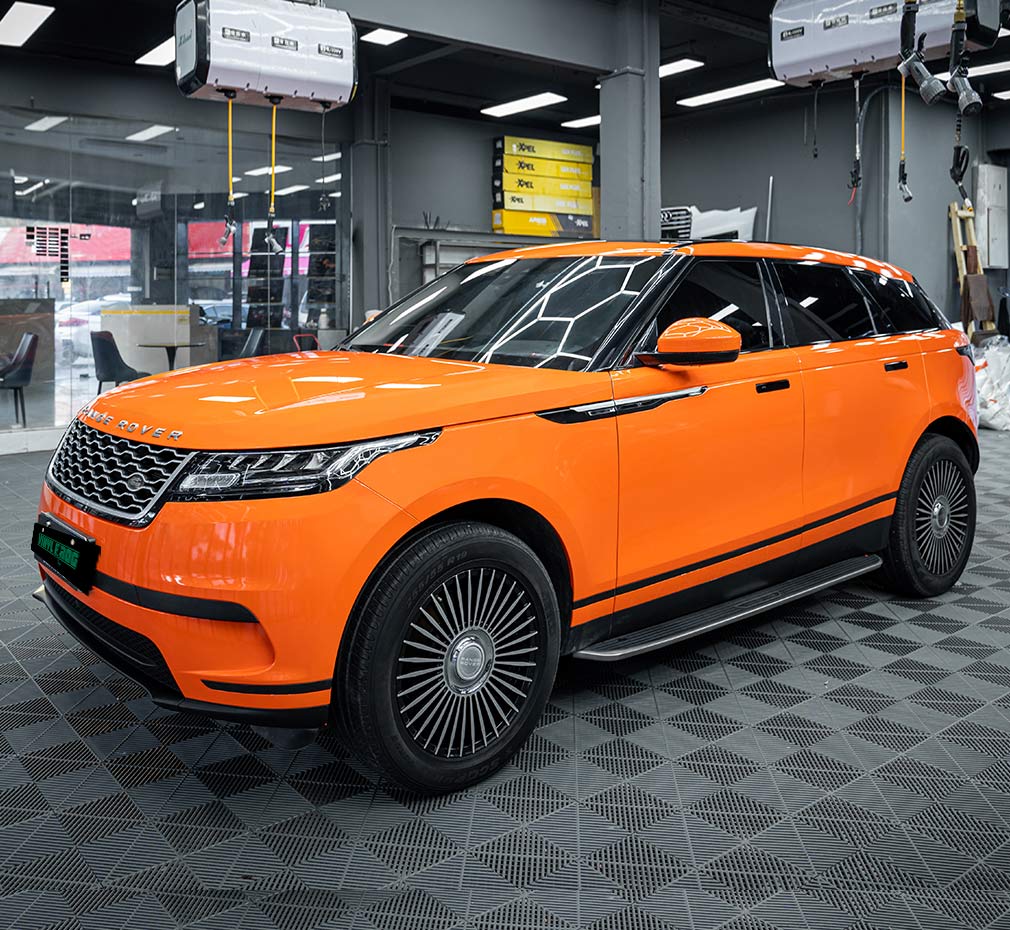

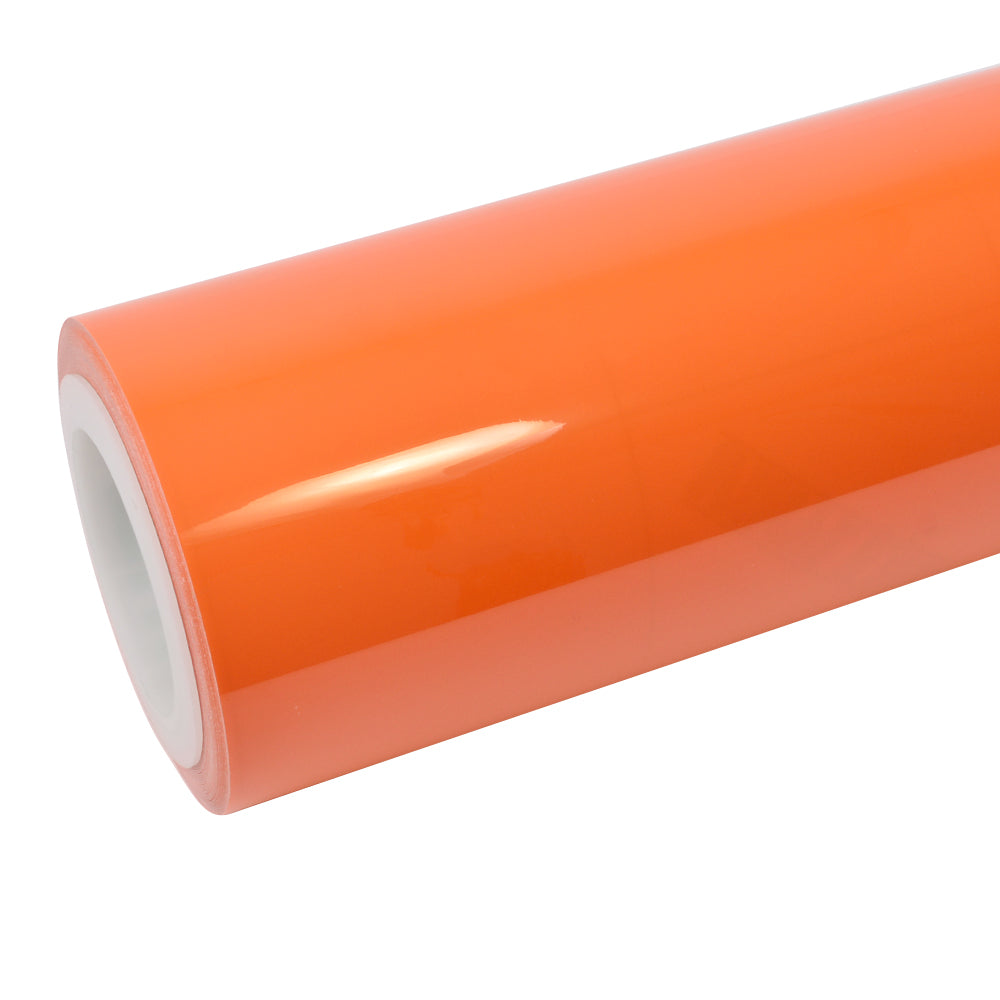

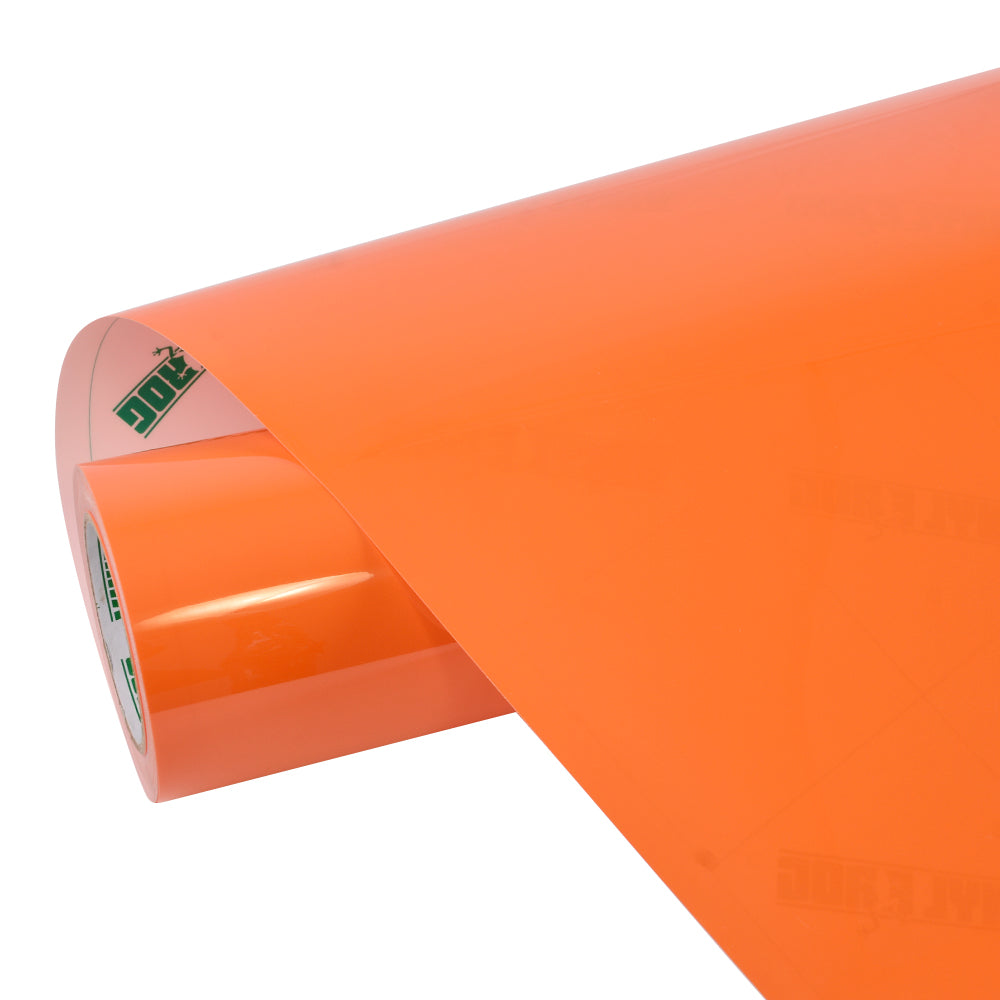

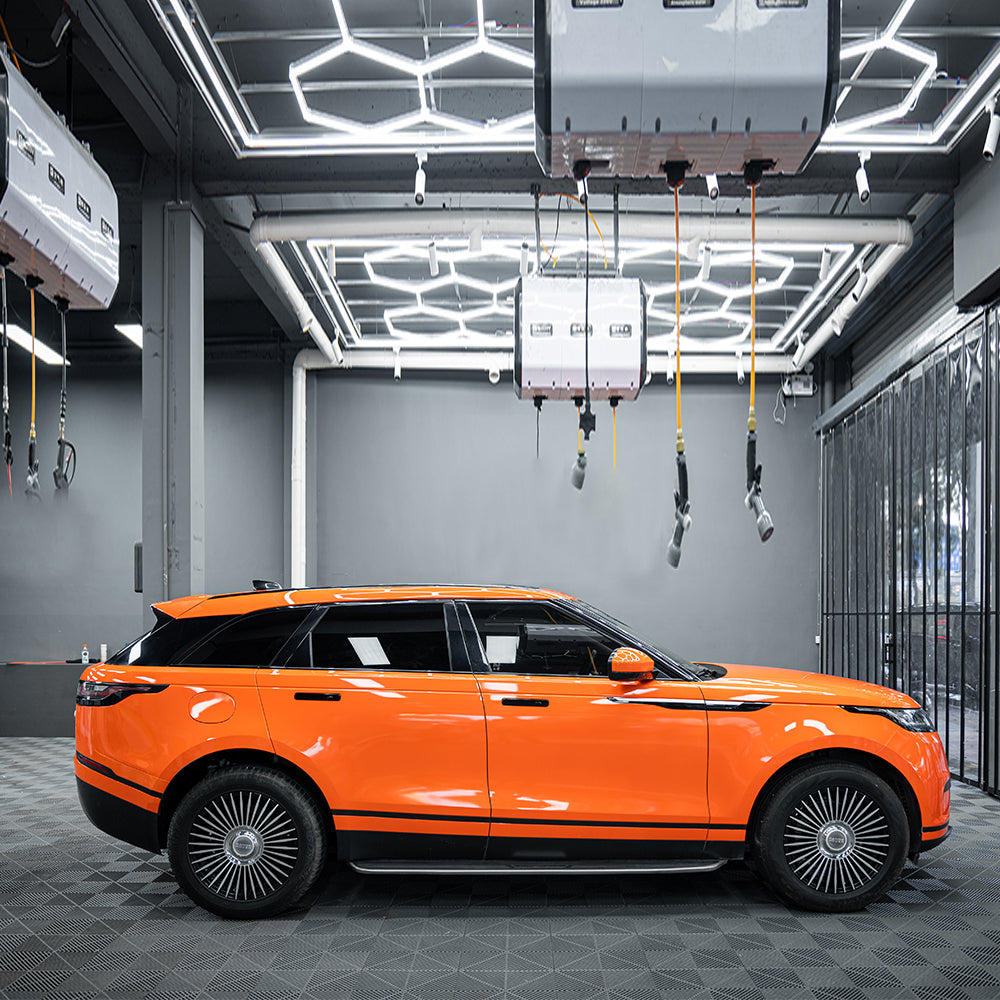

Our High Glossy Orange Vinyl Wrap creates a bold look that is sure to grab attention. Go with a bold and bright orange wrap to set your vehicle apart from the crowd. This high gloss vinyl is a durable and affordable way to give your car or truck a fun new look. Not just for cars, this orange wrap can be used on RVs, boats, trucks, vans, and any other vehicle you can think of!

The first reason to choose orange vinyl wrap is its durability. This type of material has been proven to last up to 5 years without fading or peeling off the vehicle's surface. If you're looking for an inexpensive yet effective way to give your car a new look, then this type of wrap could be perfect for you. The vinyl can be removed easily without any damage to the surface underneath. There are also no bubbles or wrinkles with this type of vinyl.

This vinyl wrap can be applied to any flat surface including rims, bumpers, grills, side mirrors, door handles, headlights, etc. The vinyl film is self-adhesive so it's easy to install - just peel off the backing paper and apply the vinyl wrap to your vehicle!

Features High Glossy Orange Vinyl Frog

• UV resistant/weatherproof
• Available in various sizes to fit your specific needs
• Easy to apply and remove without harming the underlying surface
• Dries in seconds

High Gloss Vinyl is the best option when wanting a very glossy finish with incredible color depth and superior scratch resistance. This product will not fade or crack from sun damage or peeling.

Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
