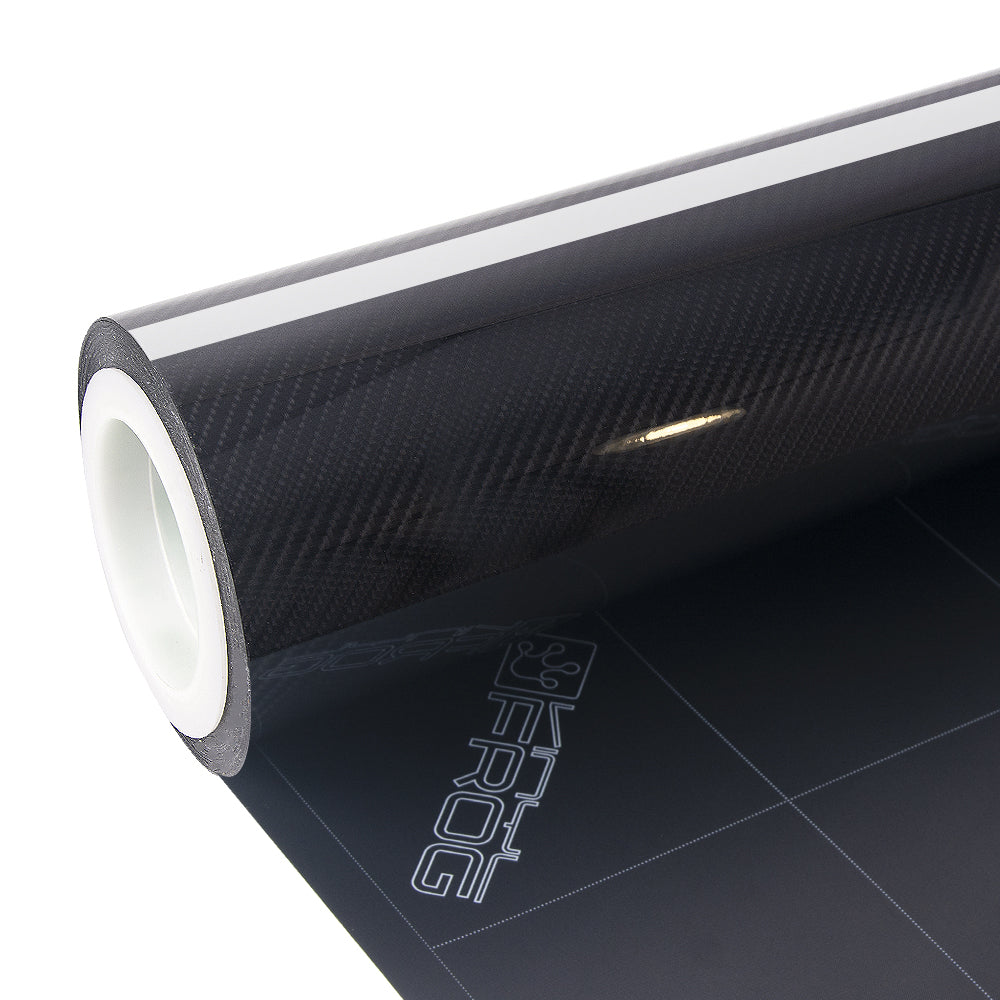

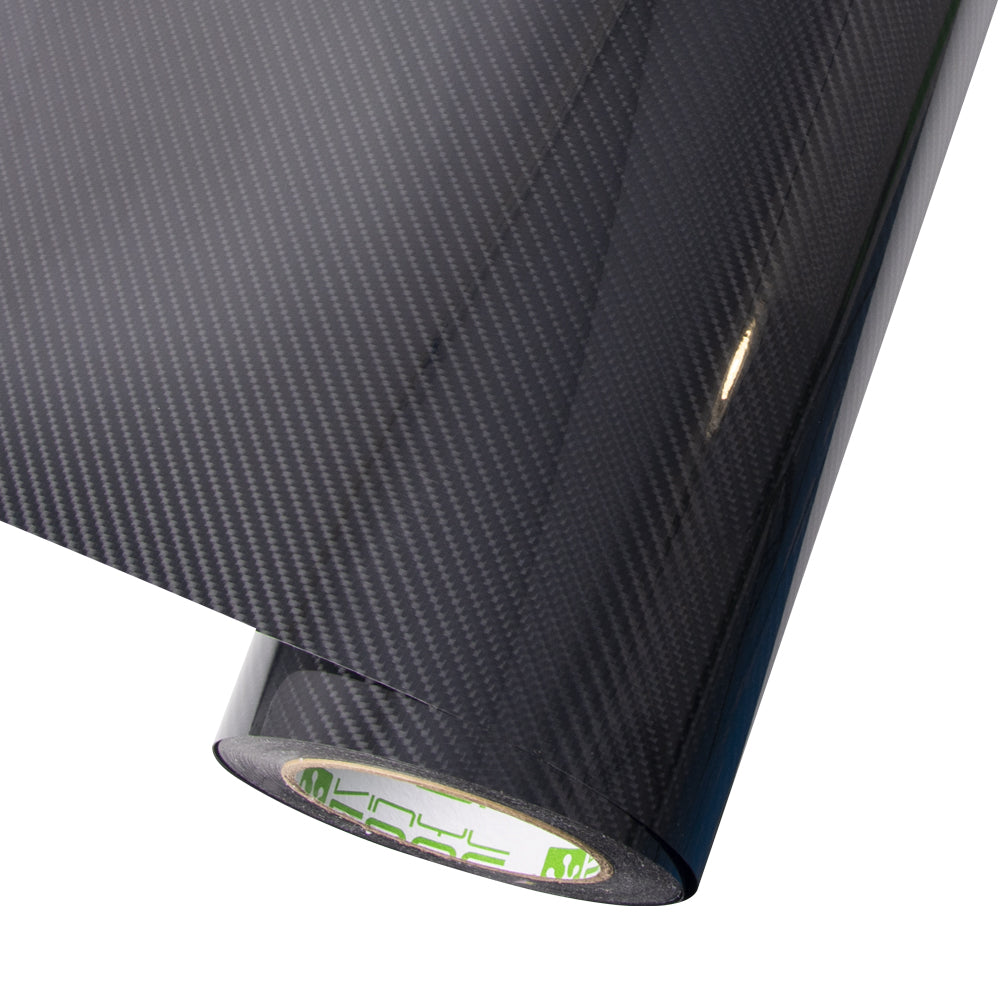

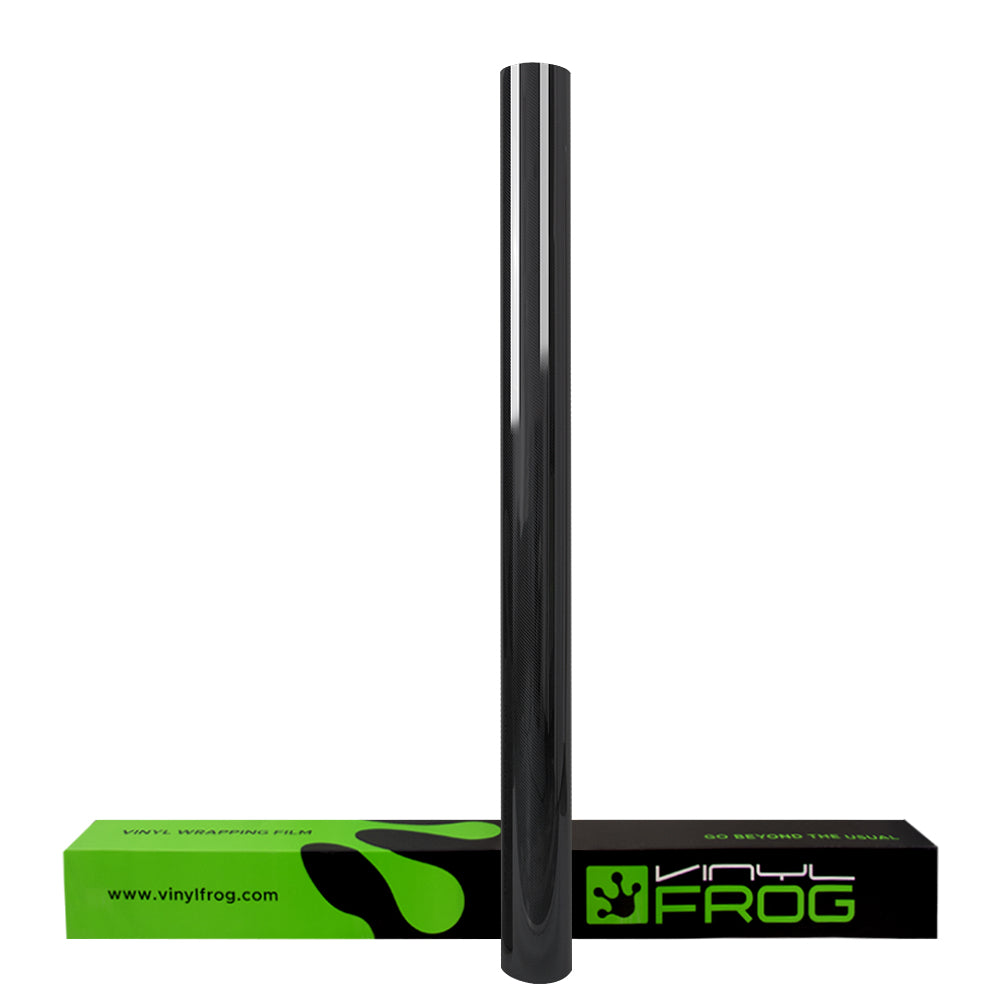

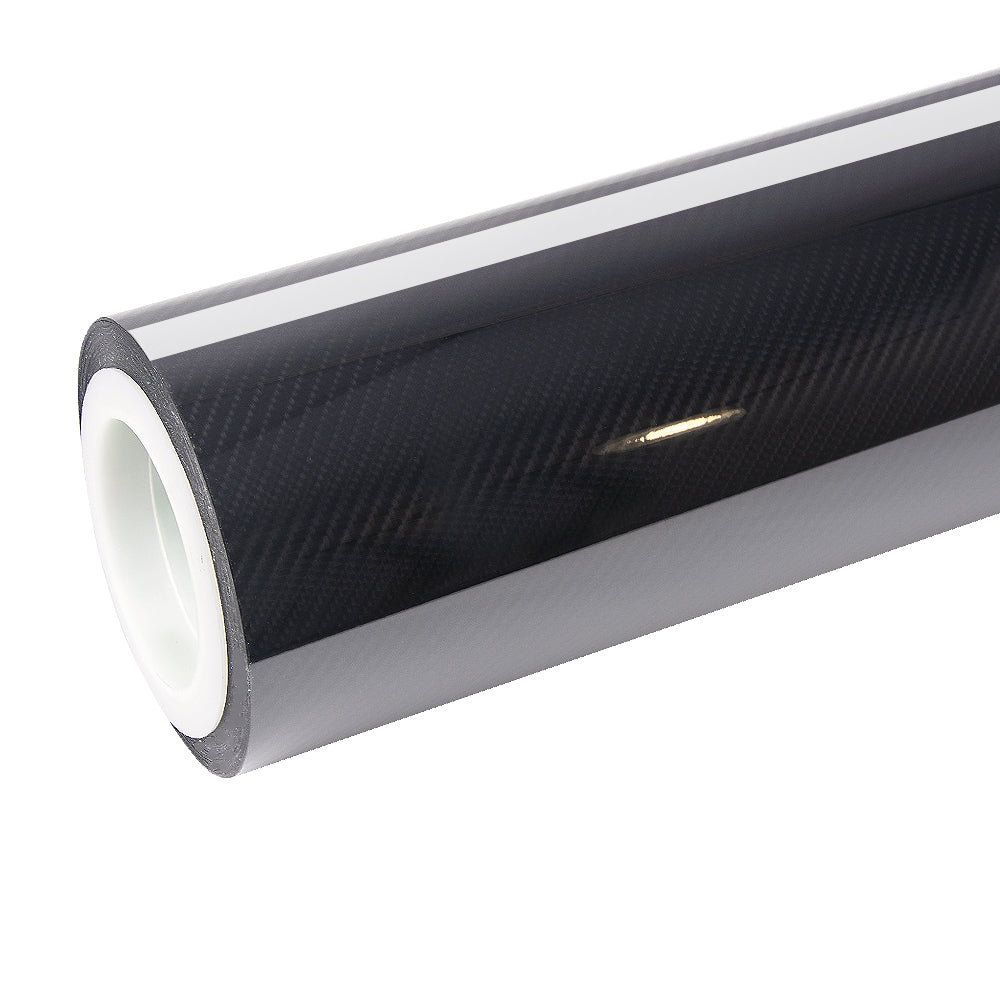

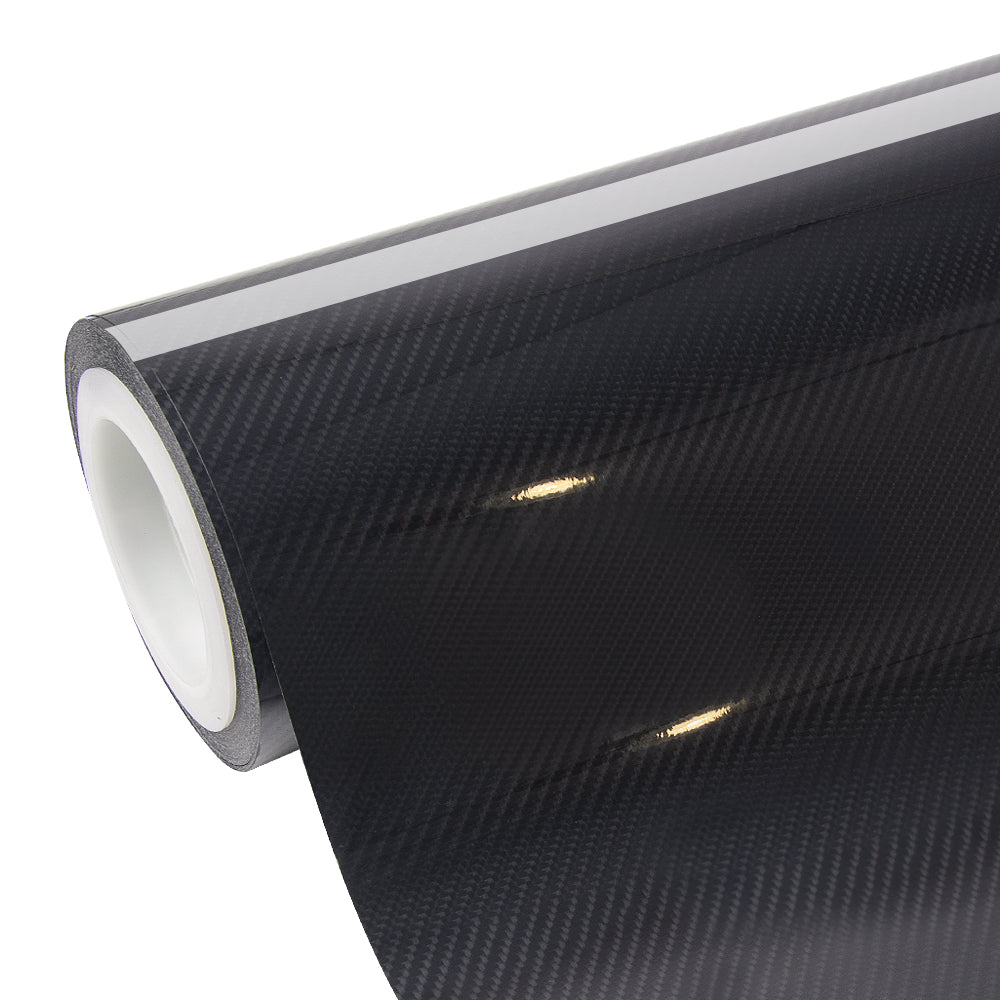

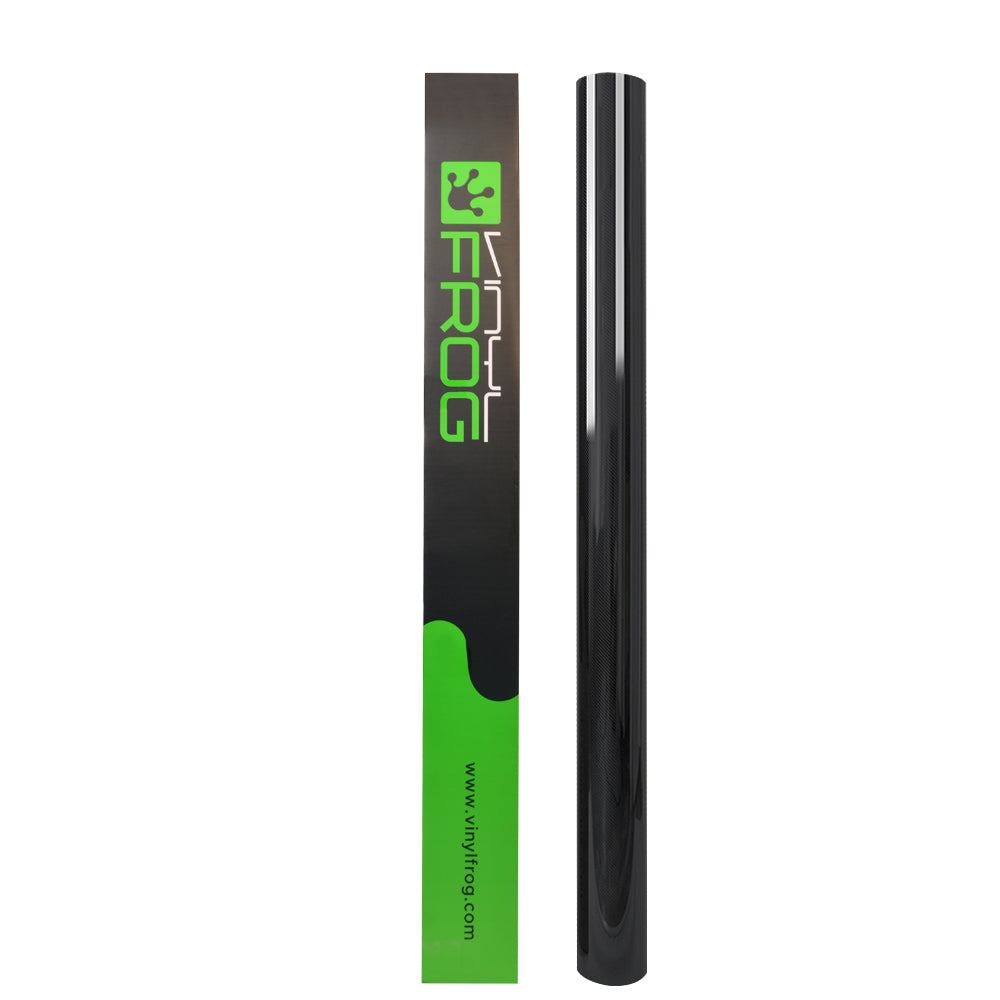

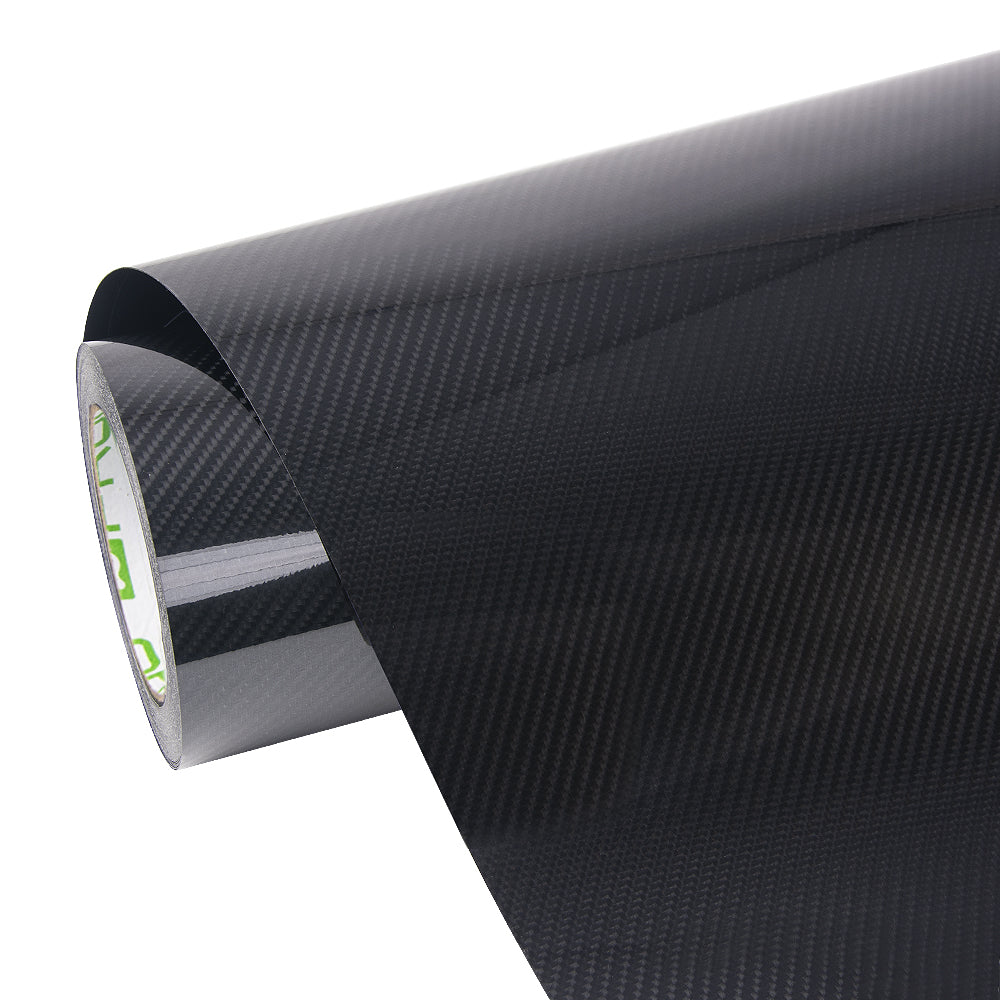

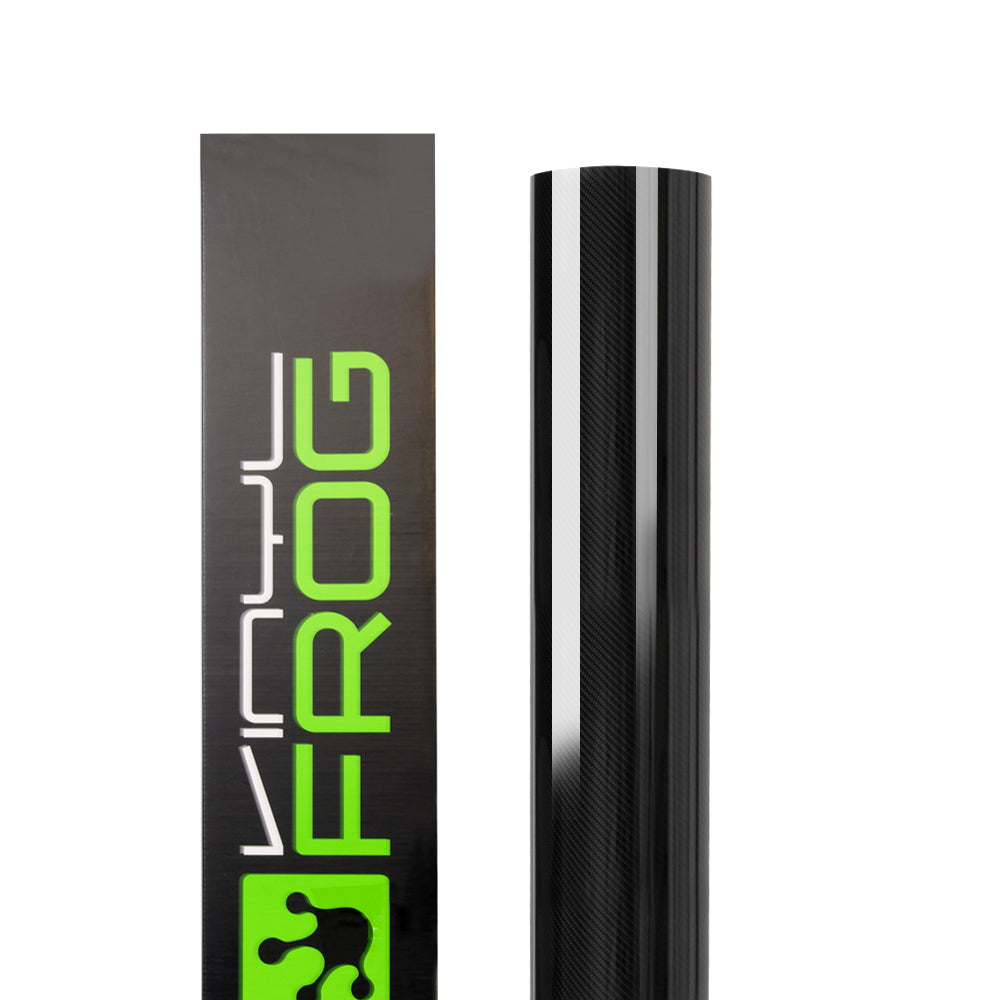

Glossy Spiral Black Carbon Fiber Vinyl Wrap

Structure

Material

• High Grade Polymeric Calendared Vinyl Film
• Fashionable, Stunning Color

• With Air Release Channel
• Bubble-free Application

• Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %



Functions

▲ Standard Size & Appearance

Classification		Unit	Spec	Remark
Thickness
	Surface materials	um	120±2%	High-grade PVC-Polymeric
	Glue	um	30±2%	High-quality Solvent-based
	Release liner	um	180±2%(paper)/ 130±2%(plastic)	－
Surface		－	Opaque	－
Width		mm	1520±0. 01%	－
Length		mm	1800+1%	－



Physical properties

▲ General Properties

Features		Test Method	Results
Release force N/25mm		25℃ and 50%	0.12
Initial tack g/25mm		under 26℃ and 64%, GB31125-2014	1360
Peel Strength N/25mm		25℃and 42%, GB/T2792-1998	7.05
Holding power(h)		25℃ and 50%, GB/T4851-1998	72.09
Shelf life		stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place	2 years
Application temperature		/	+20℃ to +30℃
Aging Test 1		7 days under 65°C	No adhesive residue with heat
Aging Test 2		10 days under 65°C	No adhesive residue without heat
Shrinkage		/	less than 4%



Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendered films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
