Structure

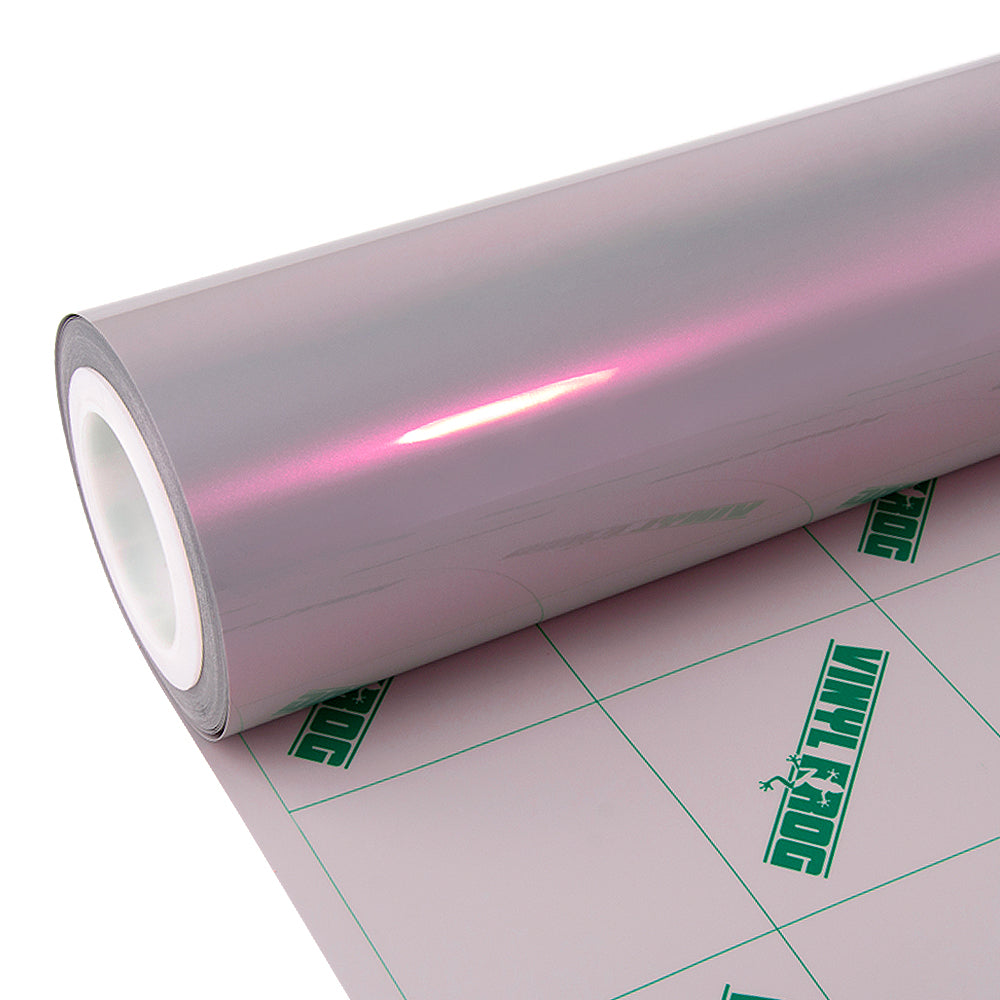

Our products are composed of 4 layers, starting from the outer edge is 1st layer that is to protects the underneath vinyl and is called the protection layer. After that, the high-grade polymeric vinyl is supported with pressure-sensitive acrylic adhesive. Lastly, there is a layer of 160g double-sided silicone coated release liner.



Material

• High Grade Polymeric Calendared Vinyl Film
• Fashionable, Stunning Color

• With Air Release Channel
• Bubble-free Application

• Slideable; Repositionable

Medium Stretchable

The Maximum is 30 %

Functions

▲ Standard Size & Appearance

Classification		Unit	Spec	Remark
Thickness	Top protected film	um	36±2%	PET/PVC
	Surface materials	um	120±2%	High-grade PVC-Polymeric
	Glue	um	30±2%	High-quality Solvent-based
	Release liner	um	180±2%(paper)/ 130±2%(plastic)	－
Surface		－	Opaque	－
Width		mm	1520±0. 01%	－
Length		mm	1800+1%	－



Physical properties

▲ General Properties

Features		Test Method	Results
Release force N/25mm		25℃ and 50%	0.12
Initial tack g/25mm		under 26℃ and 64%, GB31125-2014	1360
Peel Strength N/25mm		25℃and 42%, GB/T2792-1998	7.05
Holding power(h)		25℃ and 50%, GB/T4851-1998	72.09
Shelf life		stored in +10°C to +20°C, relative humidity 50%, in original package, away from direct sunlight, clean and dry place	2 years
Application temperature		/	+20℃ to +30℃
Aging Test 1		7 days under 65°C	No adhesive residue with heat
Aging Test 2		10 days under 65°C	No adhesive residue without heat
Shrinkage		/	less than 4%

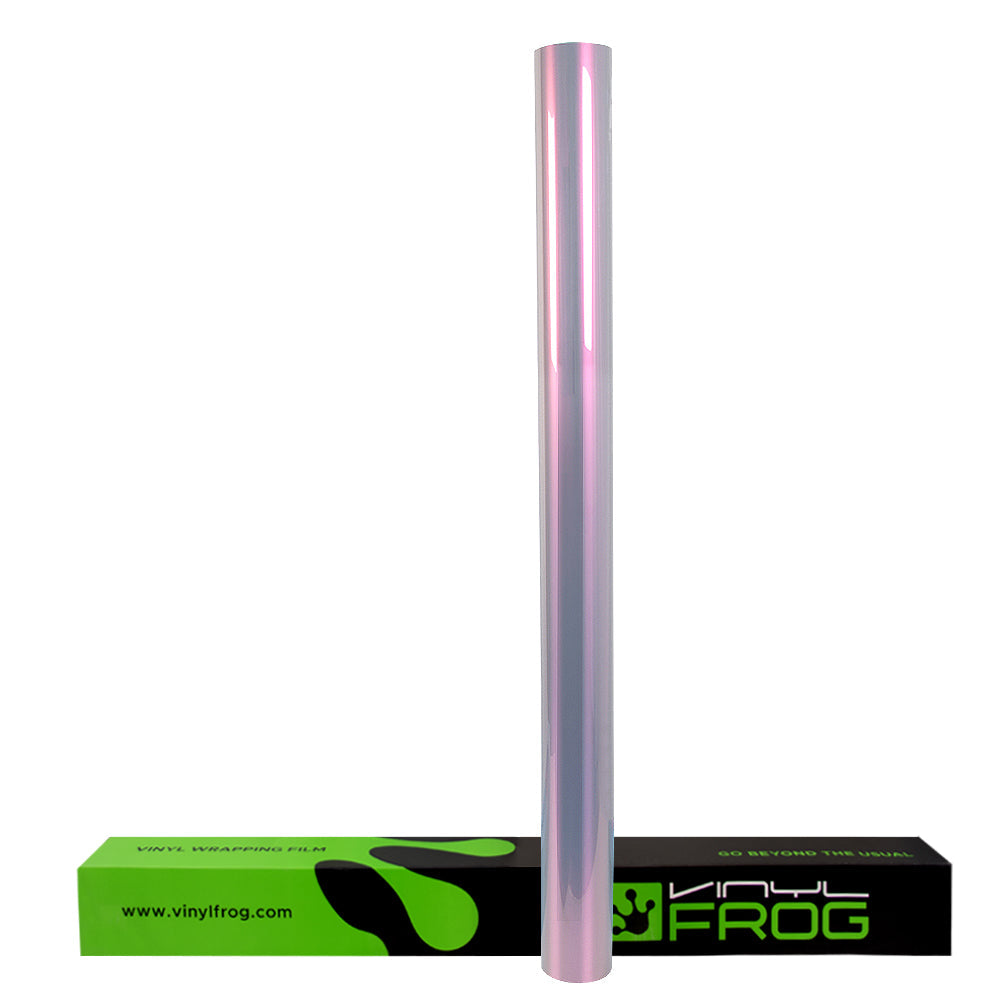

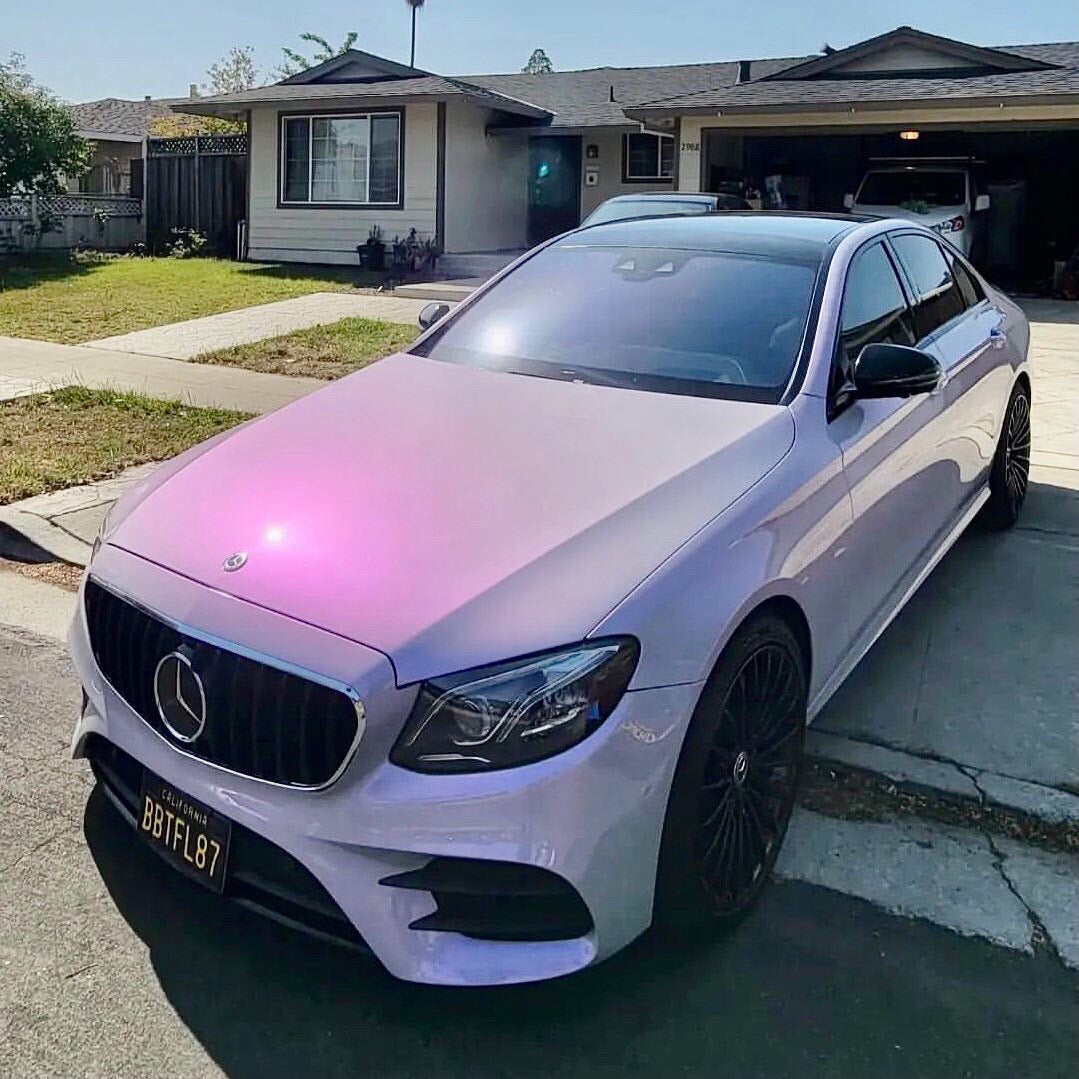

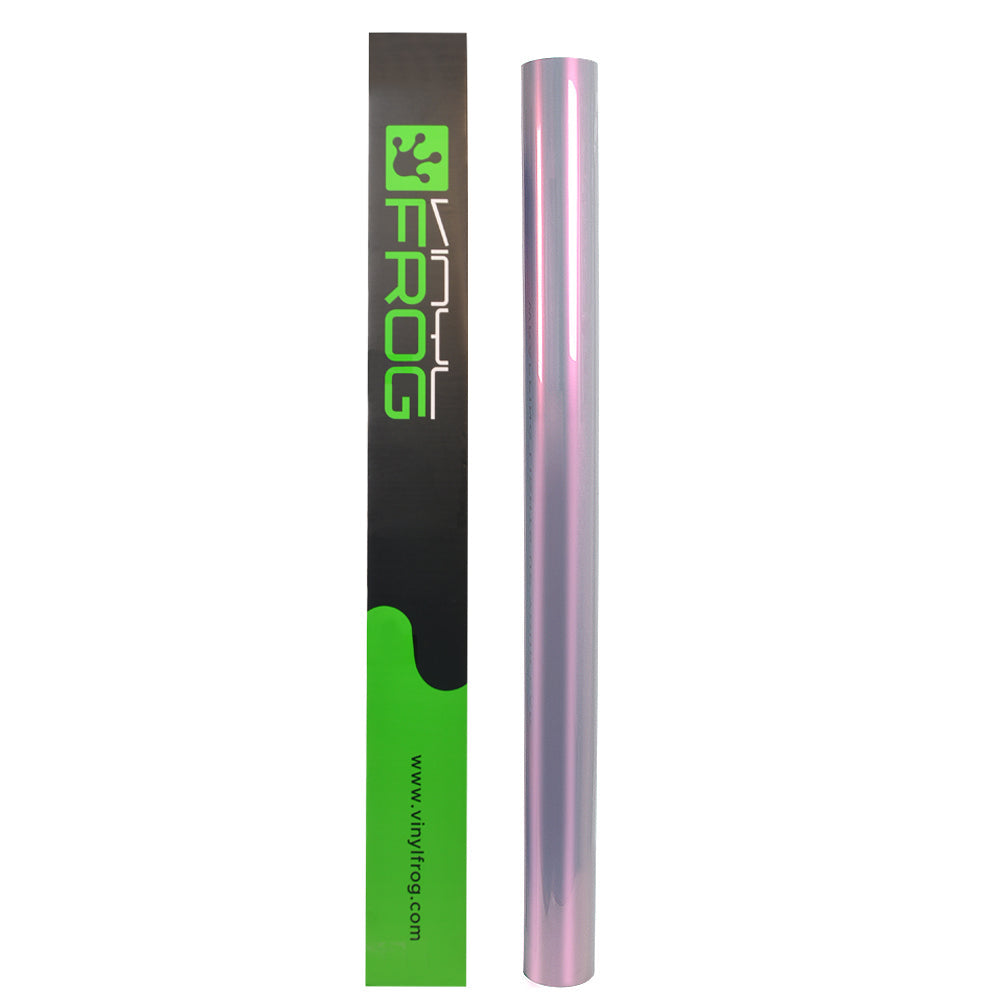

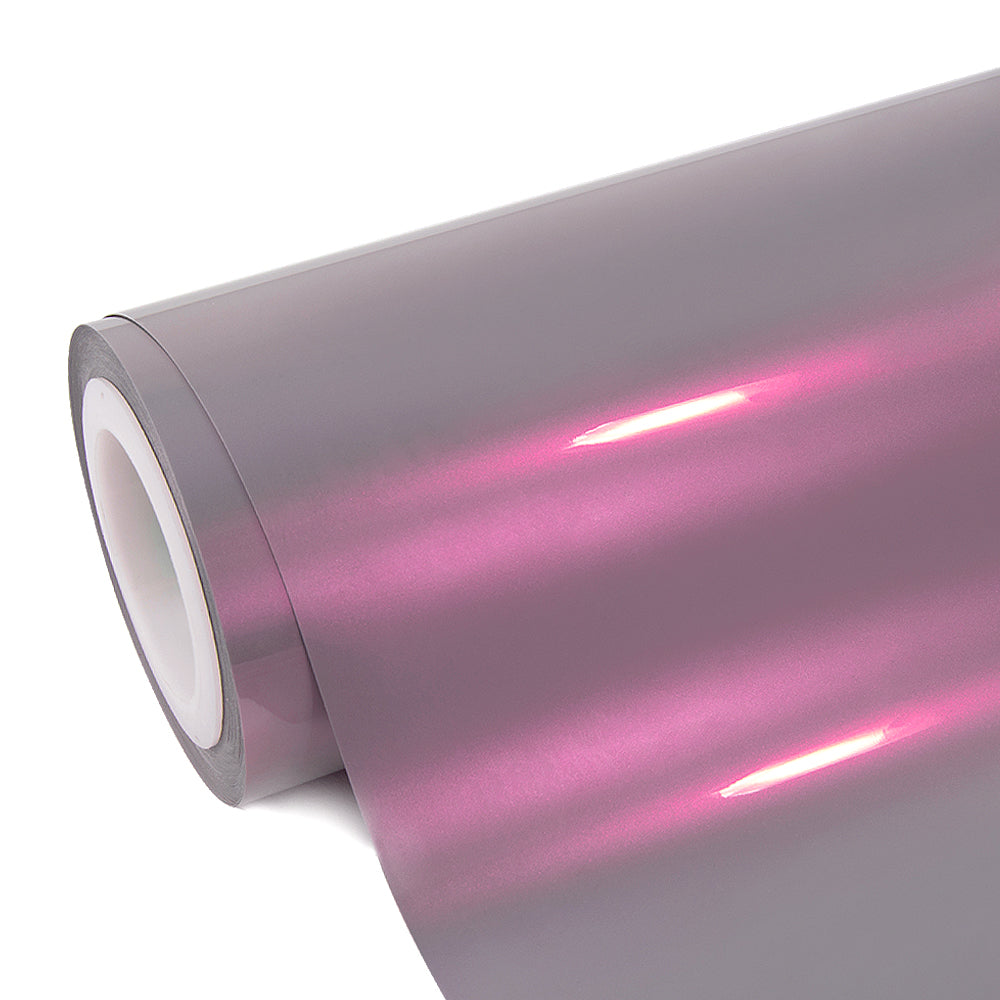

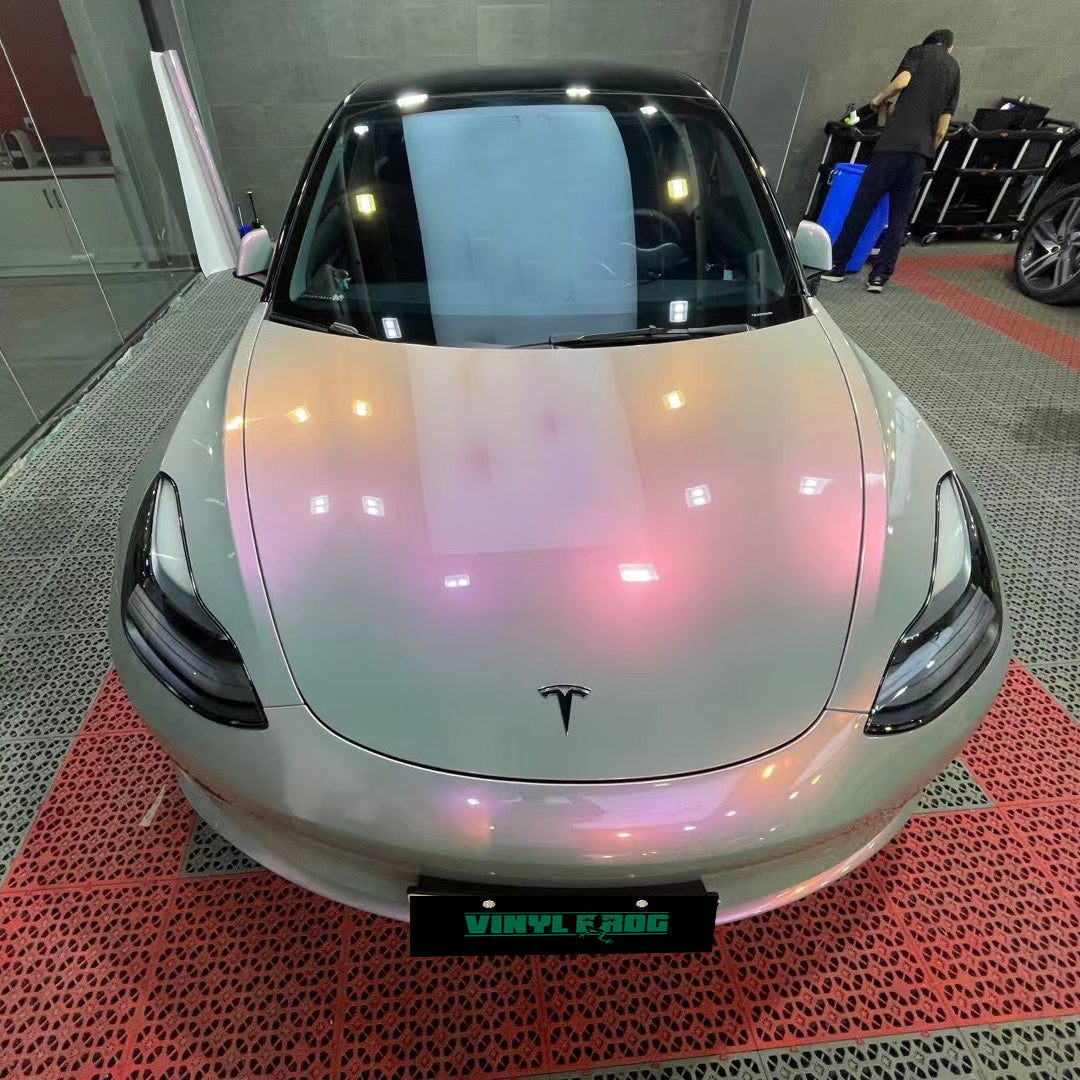

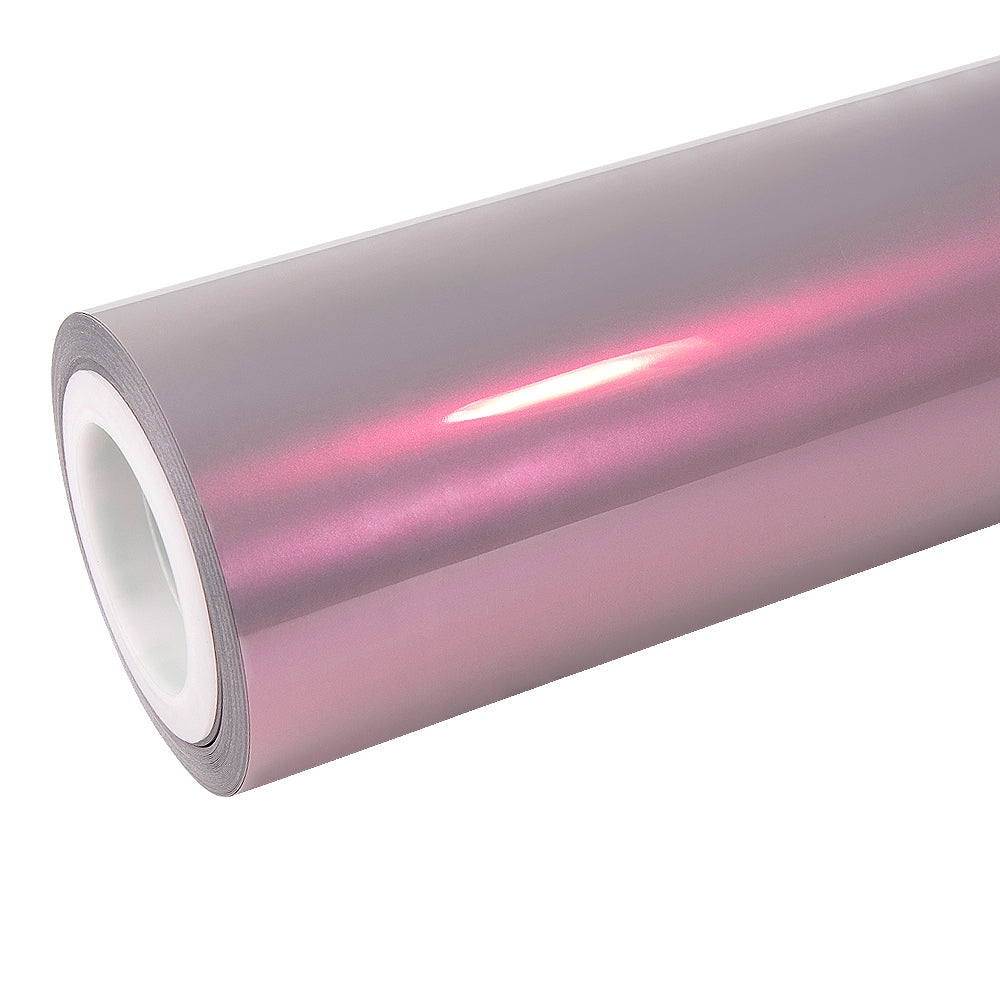

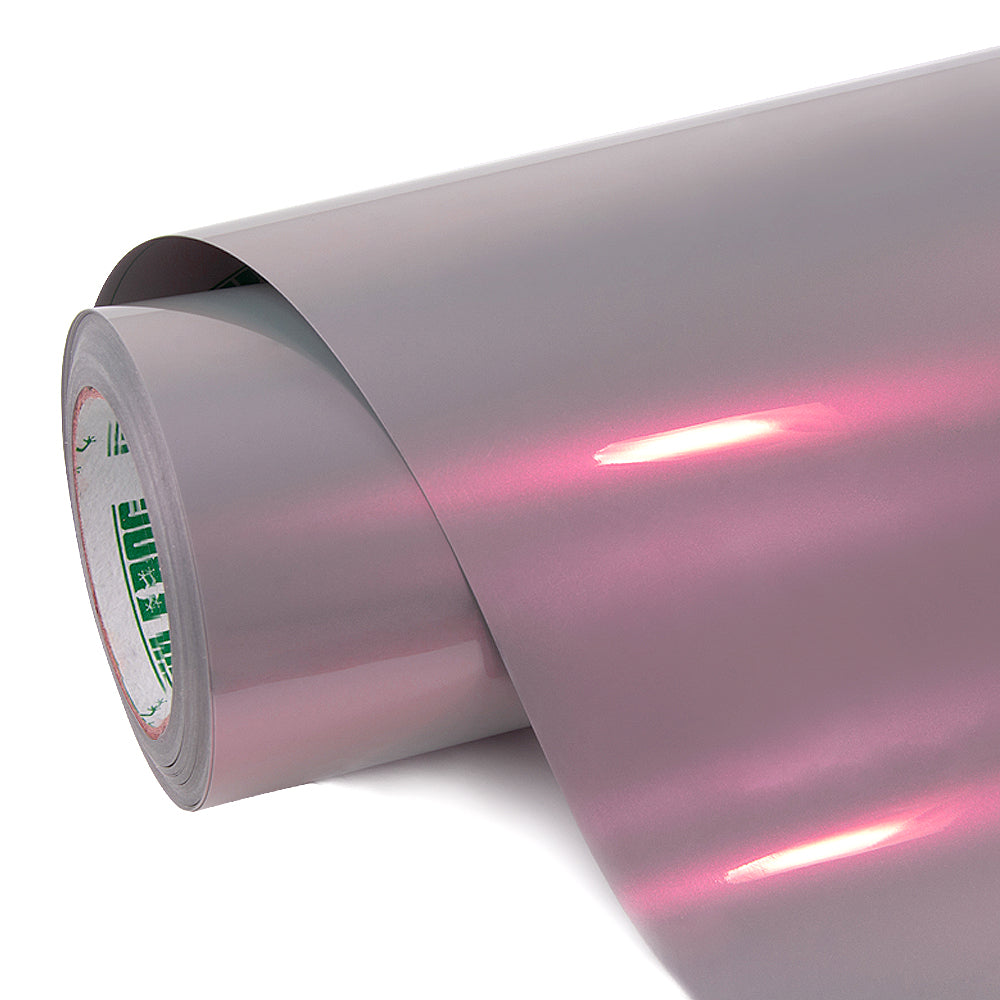

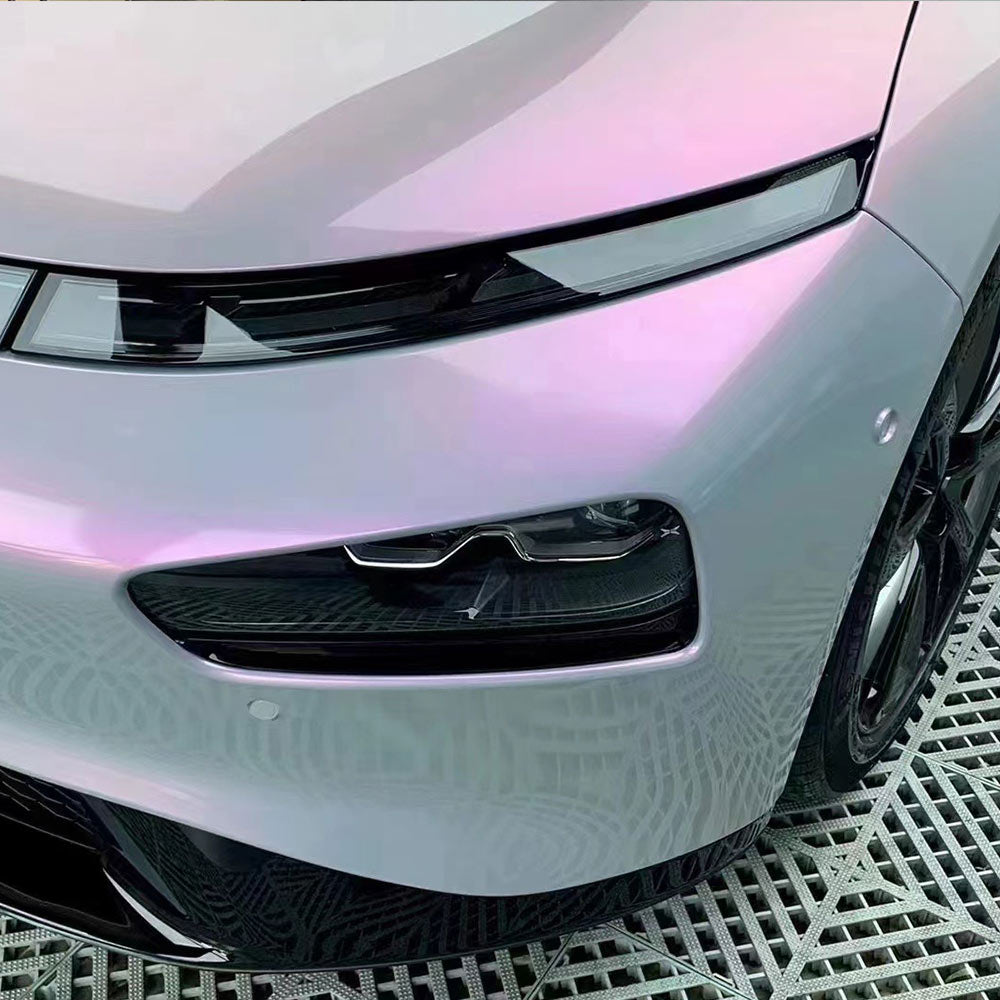

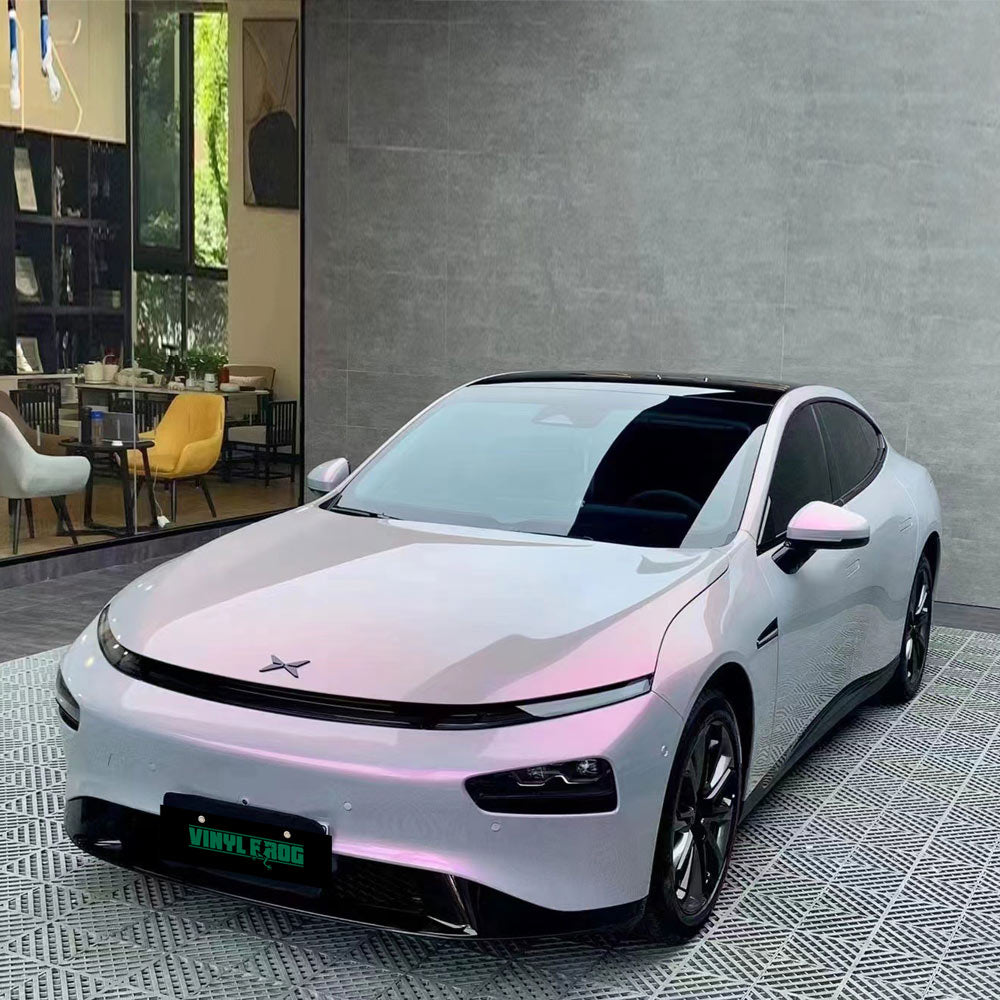

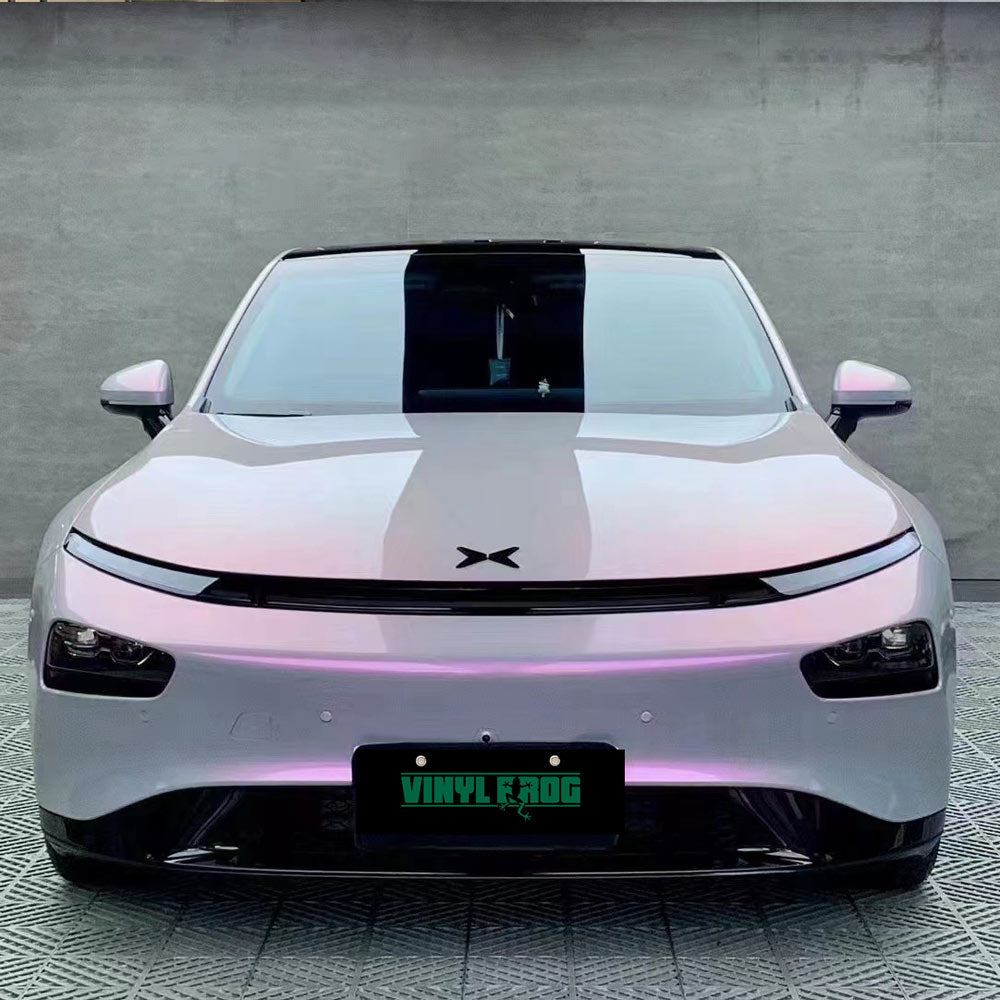

Gray is ranked as the 3rd most popular car color, next to white and black, making it a common sight on the roads today. But ordinary gray can most definitely be extraordinary gray with the Candy Metallic Gray Pink vinyl. This color combination vinyl is still predominantly gray, with subtle pink effects. This is a perfect choice if you intend on keeping your car color in the same gray gradient but just want to give it an added visual appeal enough to catch the eye as you drive along the expressway.

Made of high-quality lightweight, tough and durable material, this Candy Metallic Gray Pink vinyl is easy to use and apply as a full or partial wrap on flat and curved surfaces, both outside and inside your vehicle. Yes, use this vinyl to compliment your car interior to match your car exterior since this vinyl adheres to different surface types.



Recommended application tools: Squeegee, buffer, knife, masking tape, heat gun, magnets, gloves, IRR thermometer, IRR heater
Application method: Standard methods for calendared films. No overstretching and overheating and Post heating is necessary.
Post-heating temperature: 110°C flat surfaces, 130°C curves, and overlaps
Aftercare: PH neutral, Avoid wax or solvents

CAUTION!
The images, colors, and finishes on the screen are approximate. For the real representation of the product always check the color swatch.
